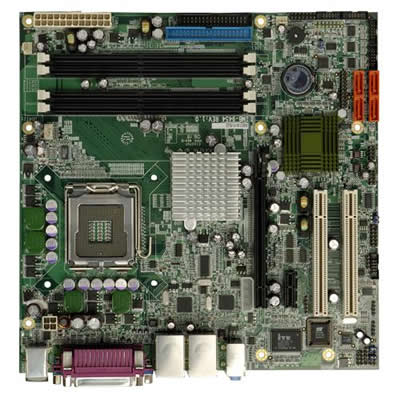

威達工控母板，ATX母板，Intel 945芯片組工業大母板IMBA-9454G

產品價格：￥1

上架日期：2011-01-20 16:05:02

產地：

發貨地：深圳

供應數量：不限

最少起訂：1個

瀏覽量：1541

點擊詢價 QQ洽談

資料下載：暫無資料下載

其他下載：暫無相關下載

詳細說明

IMBA-9454 Inb 945芯片組工業大母板支持CF卡

Features

1. Inb® Core™2 Duo, Pentium® D, Pentium® 4, Celeron® D processor in the LGA
775 package
2. Integrated Inb® GMA950 graphics engine that offers adequate display quality via
VGA interface
3. Dual-channel DDR2-400/533/667MHz SDRAM socket support up to 4GB
4. TPM V1.2 hardware security function supported
5. 4 x SATA II, 8 x USB 2.0, Audio and ATX support only

Specifications

CPU LGA 775 Inb® Core™2 Duo, Pentium® 4/Celeron® D processor, FSB 533/800/1066MHz

System Chipset Inb® 945G + ICH7

BIOS AMI BIOS Label

System Memory 4 x 240-pin Dual-channel DDR2 400/533/667MHz up to 4GB

Ethernet Dual PCIe Broadcom BCM5787M GbE chipsets

I/O Interface 8 x USB 2.0
4 x SATA II
1 x LPT
1 x FDD
5 x RS-232, 1 x RS-232/422/485
1 x 20-pin LPC for TPM
2 x PS/2 for KB/MS
1 x IDE

Super I/O ITE IT8712F

Digital I/O 8-bit digital I/O, 4-bit b/ 4-bit output

Infrared 1 x Infrared Interface by pin header

Audio Realtek ALC655 with AC97 codec

SSD CF Type II

Display Interfaces VGA integrated in Inb® 945G

Expansion One PCIe x16 (Support PCIe x1/ x16 PCIe add-on cards)
6 x PCI

Watchdog Timer Software programable 1-255 sec. system reset.

Power Supply ATX support

Power Consumption 5V@4.25A, 12V@10.17A, 3.3V@ 6.07A
(Pentium 4 3.73GHz/1066 MHz CPU with 1GB DDR2 667MHz)

Temperature Operating: 0°C ~ 60°C (32 ~ 140° F)

Humidity Operating: 5% ~ 95% non-condensing

Dimensions 305 (L) mm x 244 (W) mm

Weight GW: 1200 g; NW: 650 g

Ordering Inbation

Part No. Debion

IMBA-9454G-R10 ATX Motherboard with Inb® LGA 775 Core 2 Duo, Pentium® D/ Pentium® 4/ Celeron® D Processor FSB 533/800/1066MHz, PCIe x16 , PCIe GbE, SATA II and Audio

32200-000017-RS FDD Cable

CB-USB02-RS Dual USB Cable

CB-USB17-RS Four USB Cable

32200-000063-RS RS-232/422/485 cable

CF-775A-RS / CF-520-RS-R11 CPU Cooler

TPM-WI01-R10 20-pin WINBOND TPM Module, S/W Management Tool

TPM-IN01-R10 20-pin INFINEON TPM Module, S/W Management Tool

SDVO-100VGAR10 PCIe x16 VGA Output SDVO Card supports dual display

SDVO-100DVI-R10 PCIe x16 DVI Output SDVO Card supports dual display

Packing List

1 * Single Board Computer (P/N:IMBA-9454) 1 * P/N: 32100- 088600-RS (P/N:SATA Power Cable)

1 * IDE Cable (P/N:32200-000052-RS) 1 * I/O Shielding

2 * Dual RS-232 Cable (P/N:32200- 028401-RS) 1 * Mini Jumper Pack

1 * QIG (P/N:QIG) 1 * Utility CD

2 * SATA Cable (P/N:32000-0628000- RS)
