ABB 控制器 NextMove e100的詳細描述：
軸數：在單個或多個坐標組中的16個插補軸，管理數十個獨立的DS402定位驅動器（非插補）。
軸的類型：以太網Powerb協議（EPL）v2，3個閉環軸±10V帶有5VTTL漸進編碼器輸入接口，4個開環軸-步進電機接口（分布且定向輸出）5V差分直線驅動器（5MHz）或由命令選項選出的5V開集電極單端（最大為500KHz）
Powerb裝置，以太網
單板存儲器 固件為4M字節閃存和永久程序存儲器為10M字節SRAM，永久變量數據存儲器為32k字節FRAM
數字輸入 20個光電分離的24VDC，采樣率為1ms。所有的輸入具有中斷能力。可與正負公用塊連接，可用于范圍、位置、停機和驅動誤差配置的軟件
數字輸出 12個光電分離的12-24VDC PNP 用于啟動驅動器的可配置軟件 每信道標準為50mA 單信道最大負載為350mA 8個信道合計500mA
模擬輸出 對于驅動命令信號，有三種輸出功率 ±10V、12位分辨率 一通用±10V12位輸出
模擬輸入 兩種誤差不超過V±10V，12位分辨率下運行
繼電器輸出 單輸出適用于驅動器啟用，額定值為24V（150mA）的C型繼電器（單刀雙鄭），一般為常開常閉狀態
串行口 RS485/232
Can總線端口 標準的9針Sub-D型連接器的單CAN端口等

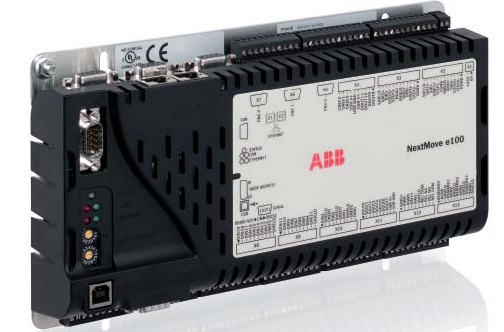

NextMove e100Ethernet POWERLINK machine controllerThe NextMove e100 builds on the proven NextMove controller family of products, integrating the management of real-time Ethernet using the industry standard protocol Ethernet POWERLINK. Drives, I/O devices, sensors, absolute encoders can all be added to the POWERLINK network and controlled from the MINT programming language. This greatly simplifies system design and installation, and simultaneously expands the capabilities of the NextMove e100 as a machine control platb.
NextMove e100 can perb interpolation for up to 16 axes, either as a single coordinate group or as an independent sub-group in a multitiple coordinate system with interpolation over the Ethernet POWERLINK network or the built in stepper/servo axes. NextMove e100 is compatible with ABB's Ethernet POWERLINK AC servo drives - MicroFlex e100 and MotiFlex e100.
NextMove e100 is part of the e100 motion family including MotiFlex e100, Mint Machine Modules and range of single phase servo drives, MicroFlex e100 all controlled via Ethernet POWERLINK.
NextMove e100 provides control of up to 16 coordinated axes of motion and many more non-coordinated axes. Axes can be split amongst the three phase MotiFlex e100 drives and single phase MicroFlex e100 drives to suit the application requirements.
Features:Ordering inbation and accessories:
 |
|
| NXE100-1608DBW | NextMove e100 8 axis motion controller. Differential stepper outputs |
| NXE100-1608SBW |
NextMove e100 8 axis motion controller. Single ended open collector stepper outputs for use with DSM integrated stepper/driver motors |
| NXE100-1612DBW | NextMove e100 12 axis motion controller. Differential stepper outputs |
| NXE100-1612SBW |
NextMove e100 12 axis motion controller. Single ended open collector stepper outputs for use with DSM integrated stepper/driver motors |
| NXE100-1616DBW | NextMove e100 16 axis motion controller. Differential stepper outputs |
| NXE100-1616SBW |
NextMove e100 16 axis motion controller. Single ended open collector stepper outputs for use with DSM integrated stepper/driver motors |
| OPT036-501 | Ethernet POWERLINK Router for remote connection / access to to a POWERLINK system / network |
| CBL001-501 |
2m (6ft) RS232 cable for programming and diagnostics (note: 2m (6ft) USB cable included with the motion controller) |
| CBL034-501 |
RS232 programming cable (PC to HMI) |
| MNC001-501 | MintNC - Windows profiling front end for NextMove which accepts industry standard files: HPGL, DXF and G-code. |
| HMI - see ABB operator panels | |
| 24V power supplies - see ABB power supplies | |
| Ethernet cables - For connecting NextMove e100 to MicroFlex e100 | |
| CBL002CM-EXS | Ethernet Cable: Shielded CAT5e RJ45 200mm / 8in |
| CBL005CM-EXS | Ethernet Cable: Shielded CAT5e RJ45 500mm / 1.6ft |
| CBL010CM-EXS | Ethernet Cable: Shielded CAT5e RJ45 1m / 3.2ft |
| CBL020CM-EXS | Ethernet Cable: Shielded CAT5e RJ45 2m / 6.5ft |
| CBL050CM-EXS | Ethernet Cable: Shielded CAT5e RJ45 5m / 16.3ft |
| CBL100CM-EXS | Ethernet Cable: Shielded CAT5e RJ45 10m / 32.6ft |
