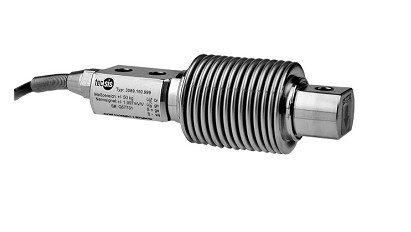

Model |
F3210 |
Options |
|
|
Nominal load Fnom in kg |
5*, 10, 20, 50, 100, 200, 300, 500 |
1000, 2000, 5000 |
|
|
Accuray class |
3000 d OIML 1) |
3000 d OIML 2) |
1500, 4000, 6000 d OIML |
|
Resulution in g |
1.5*, 1, 2, 5, 10, 20, 30, 50 |
100, 200, 500 |
|
Limit load |
150% Fnom |
|
|
Breaking load |
>300% Fnom |
|
|
Combined error |
≤± 0.017% of F.S. |
|
|
Creep (30 min. at Fnom) |
≤± 0.025% of F.S. |
|
|
Zero reset after 30 min. with nominal load |
0.017% |
|
|
Nominal deflection |
< 1 mm |
|
|
Nominal temperature range |
-10 bis +40°C |
|
|
Service temperature range |
-20 bis +60°C |
|
|
Storage temperature range |
-40 bis +70°C |
|
|
Reference temperature |
23°C |
|
|
Temperature effect -span -zero |
<± 0.014% of F.S. /10 K <± 0.028% of F.S. /10 K |
|
|
Protection type (acc. to EN 60 529/IEC 529) |
IP 68 |
|
|
Insulation resistance |
> 5 G / 50 V |
|
|
Analogue output |
|
|
|
- Output signal - Bridge resistance
- Option
- Tolerance of span - Zero - Excitation voltage - Option - Electrical connection |
2 mV/V Input: 385 20 Output: 350 5 Cable integrated ampif ier 0 (4) … 20 mA, 0 … 10 V DC ≤± 0.1 % of F.S. ≤± 1.5 % of F.S. 10 V ( max. 15 V) 16 … 32 V for cable int egrated amplifier cable 3 m cable 5 m 4-wire, shielded |
|
|
Fastening torque |
25 Nm |
100 ... 200 Nm |
|
Weight |
0.45 kg |
0.9 ... 2.0 kg |
|
Mounting equipment |
see sep. data sheet |
|
|
Material of measuring device |
Stainless steel |
|
|
Weight (kg) |
|
|
|
- 5 - 500 - 1000 - 5000 |
0,45 kg 0,9 kg |
|
