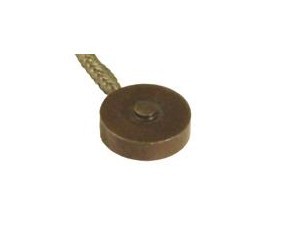

Model |
F1222 |
Options |
|
|
Nominal load Fnom in N |
0.5; 1.5; 2.5; 5; 10; 20; 50 |
100; 200; 500; 1000; 2000; 5000 |
|
|
Nonlinearity |
±0.5% of F.S. |
±0.25% of F.S. |
|
|
Hysteresis |
±0.5% of F.S. |
±0.25% of F.S. |
|
|
Repeatability |
±0.1% of F.S. |
±0.1% of F.S. |
|
|
Limit load |
150% Fnom |
|
|
|
Breaking load |
>300% Fnom |
||
|
Max. dynamic load |
±70% Fnom DIN 50 100 |
|
|
|
Nominal deflection |
< 0.015 mm |
|
|
|
Nominal temperature range |
+15 ... +70°C |
|
|
|
Service temperature range |
-54 ... +120°C |
|
|
|
Reference temperature |
23°C |
||
|
Temperature effect -span -zero |
≤±0.2% of F.S./10K ≤±0.1% of F.S./10K |
|
|
|
Protection type (acc. to EN 60 529/ IEC 529) |
IP 65 |
|
|
|
Insulation resistance |
>5 G (50V) |
||
|
Analoque output |
|
|
|
|
- Output signal
- Bridge resistance - Option
- Power requirement
- Electrical connection |
0.5 N : 5 mV/V 1.5 N up to 5 N: 15 mV/V 10 N: 1.5 mV/V 20 N up to 5 kN: 2.0 mV/V 350 (to 5 N: 500 semiconductor strain gauge) for cable integrated amplifier 0 (4) … 20 mA, 0 … 10 V DC 5 (max. 5 V); 24 V DC for cable integrated amplifier cable 1.5 m, open wires, 4-wire, shielded |
|
|
|
Material of measuring device |
Stainless steel 17-4PH |
|
|
|
Weight (incl. cable) |
1 up to 10g (9 up to 18g) depending on nomnial load |
|
|
