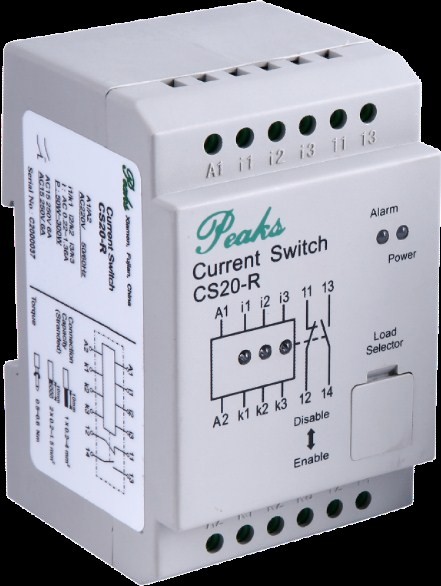

電流開關 CS20-R
Current Relay CS20-R
The CS20-R is a low cost current relay designed for applica-tion that require an on-off indication of current. The relay will act while current is above the pre-set value，the current relay is recommended to be used for application where the operat-ing current is above 200mA。It is with 3 way selector that is used for to select the load circuit needed to be monitor.
The typical application is to monitor the work status of heat-ing element. When the load lose more than 1/3, the current switch will alarm, the alarm indicator will bright, and the con-tacts of relay will switch.
CS20-R電流開關，是一種低成本,專為只需要指示和告警電流有或無的場合應用的電流繼電器。電流值超過電流預置值時就能改變輸出繼電器的狀態，因此電流開關能應用于監視電流為200mA以上的場合。帶有3路選擇開關，可用于選取需要監視的負載回路。
典型的應用場合為監視加熱元件的工作狀態。當加熱元件開路時，電流開關的告警指示燈會亮起，其輔助接點就會輸出告警信號；當組合式加熱元件中部分缺失，電流開關也會告警。
應用場合
Application
技術數據
Technical data
CS20-R
電源
power supply
AC220V, 50/60Hz
功耗
Power consumption
<2W
接線端子
Terminals
導線截面最大至4mm2
Conductors up to 4mm2
防護等級
Protection class
IP30
環境溫度
Ambient temperature
-25 °C to +45°C
使用壽命
Life span
>100,000h
額定電流
Rated current
2.5A
額定動作點
Rated acting point
<200mA
響應時間
Response time
<1s
初始化時間
Initial time
<3s
繼電器觸點
Relay contacts
1NO+1NC
繼電器觸點額定開斷容量
Rated contacts switching capacity
AC-15/250V 6A
耐壓強度
Insulating strength
AC2000V, 50Hz, 1Min
安裝位置
Location mounted
任意
As desire
安裝方式
Mount b
DIN35mm導軌安裝
Mount at DIN35 rail
外殼材料
Material of enclosure
材料性能符合DIN7708標準
Insulating material according to DIN7708
