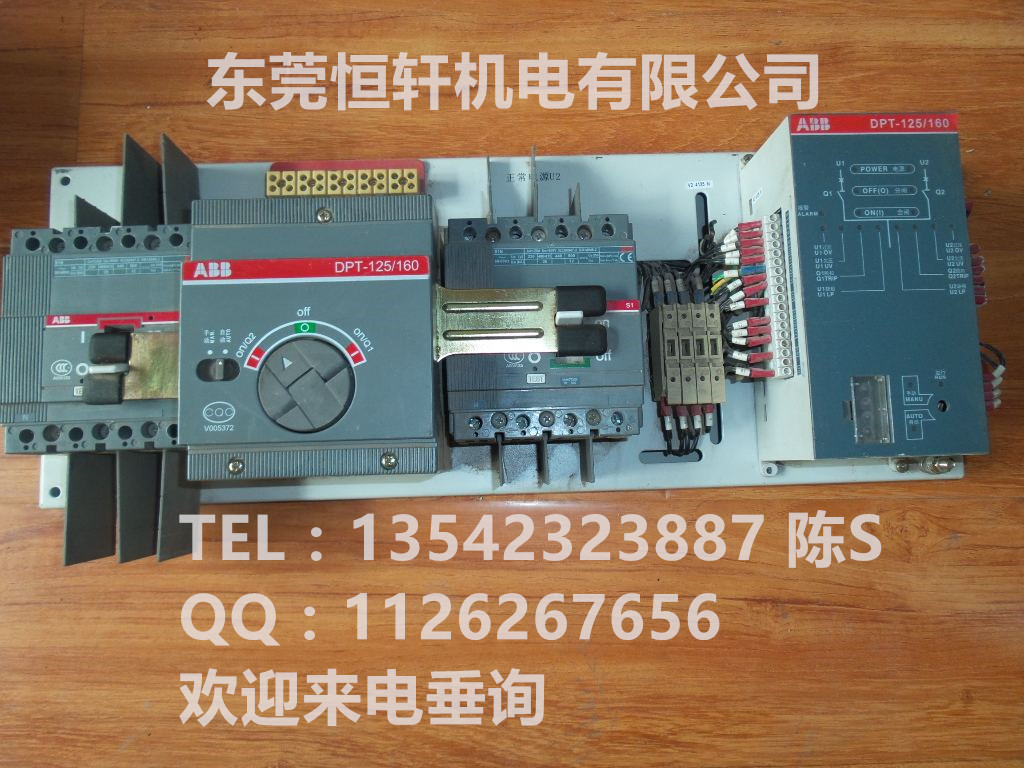

為核心的自動控制器和帶機電聯鎖的控制機構，是一種性能完善、安全可靠、自動化程度高、使用范圍廣的雙電源自動轉換開關。
雙電源自動切換開關適用于交流50/60Hz、690V及以下，額定電流自6A至1250A及以下的兩路電源(常用電源N和備用電源或發電機電源R)的供電系統中，因一路電源發生故障(停電、欠壓、過壓、斷相、頻率偏移)而進行電源之間的自動切換，以保證供電的可靠性和安全性，實現無人值守連續供電。
雙電源自動切換開關安全操作規程步驟如下：
1、當因故停電，且在較短時間內無法恢復供電時，必須啟用備用電源。步驟：
①切除市電供電各斷路器(包括配電室控制柜各斷路器，雙電源切換箱市供電斷電器)，拉開雙投防倒送開關至自備電源一側，保持雙電源切換箱內自備電供電斷路器處于斷開狀態。
②啟動備用電源(柴油發電機組)，待機組運轉正常時，順序閉合發電機空氣開關、自備電源控制柜內各斷路器。
③逐個閉合電源切換箱內各備用電源斷路器，向各負載送電。
④備用電源運行期間，操作值班人員不得離開發電機組，并根據負荷的變化及時調整電壓、廠頻率等，發現異常及時處理。
2、市電恢復供電時，應及時做好電源轉換工作，切斷備用電源，恢復市電供電。
步驟：
①按順序逐個斷開自備電源各斷路器，順序是：雙電源切換箱自備電源斷路器→自備電源配電柜各斷路器→發電機總開關→將雙投開關撥至市電供電一側。
②按柴油機停機步驟停機。
③按順序，從市電供電總開關至各分路開關逐個閉合各斷路器，將雙電源切換箱自市電供電斷路器置于閉合位置。
3、檢查各儀表及指示燈指示是否正常，啟動變壓器內冷卻風扇
Double power supply automatic switching switch The utility model relates to a double power supply automatic switching switch, which is a double circuit power supply switch. Double power automatic switch as actuators, with automatic controller using MCU as the core and the mechanical interlock control mechanism is a dual power supply, perfect perbance, safe and reliable, high degree of automation, the use of a wide range of automatic conversion switch. Double power automatic switch for AC 50/60Hz, rated current 690V and below, from 6A to 1250A and the following two power supply (common power supply N and standby power supply or power generator R) power supply system, due to a power failure (power failure, overvoltage, undervoltage, open phase and frequency offset) and automatic switching between power supply, to ensure the safety and reliability of power supply, power supply to achieve continuous unattended. Double power supply automatic switch safety procedures are as follows: 1, when the power outage, and in a short period of time can not restore power supply, must enable the standby power supply. Step: The removal of electric power supply of each circuit breaker (including the circuit breaker control cabinet, power distribution room dual power switch box power supply breaker), open the double throw switch to the prevention of back power supply side, keep the double power supply switching power supply box self breaker is in off state. Start the standby power supply (diesel generator set), when the standby group is running normally, turn off the generator air switch and the circuit breaker in the control cabinet. The power supply circuit breaker of each power supply is switched off by the power supply switch box. During the operation of standby power supply, the operator on duty shall not leave the generator set, and adjust the voltage and the frequency of the plant in time according to the change of the load. 2, the city to restore power supply, should do a good job in a timely manner to power conversion, cut off the standby power supply, restore power supply. Step: The sequentially disconnect power supply of each circuit breaker, the order is: dual power supply switching power supply circuit breaker box, power distribution cabinet, each circuit breaker switch, the generator double throw switch to electric power supply side. According to the diesel engine shutdown step down. According to the order, the main switch of the power supply of the city is connected to each branch switch to close the circuit breakers one by one. 3, check the instrument and indicator light is normal, start the transber cooling fan.
