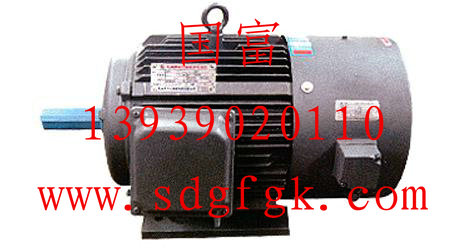

YVP系列變頻調速三相異步電動機采用AMCAD設計而成，可實現電動機的無極調速，具有運行噪聲低，轉動平穩，節能效果明顯，調整性能好，調整比寬等優點，能和國內外各類變頻裝置相配套。
一、使用條件 ⑴海拔不超過1000m。 ⑵環境溫度不超過40℃。 ⑶電機防護等級IP44。 ⑷相對濕度：不超過90%（20℃以下時）。 ⑸工作制：SI連續。 ⑹絕緣等級：B（或F）級。 ⑺電動機的額定電壓380V，頻率為50Hz，也可根據用戶要求確定額定點的電壓和頻率。
性能數據
| 型號 Type |
功率 Power(kw) |
額定電流 Rated Current(A) |
額定轉矩 Rated torque(N.M) |
恒轉矩調頻范圍 Constant torque frequency range(Hz) |
恒功率調頻范圍 Constant power frequency range(Hz) |
| YVP 80 M1-4 | 0.55 | 1.6 | 3.5 | 5-50 | 50-100 |
| YVP 80 M2-4 | 0.75 | 2 | 4.7 | ||
| YVP 90S 3-4 | 1.1 | 2.9 | 7 | ||
| YVP 90L-4 | 1.5 | 3.7 | 9.5 | ||
| YVP 100L1-4 | 2.2 | 5.2 | 14 | ||
| YVP 100L2-4 | 3 | 6.8 | 19 | ||
| YVP 112M-4 | 4 | 9.2 | 25.4 | ||
| YVP 132S-4 | 5.5 | 11.8 | 35 | ||
| YVP 132M-4 | 7.5 | 15.6 | 47.7 | ||
| YVP 160M-4 | 11 | 22.3 | 70 | ||
| YVP 160L-4 | 15 | 30.1 | 95.5 | ||
| YVP 180M-4 | 18.5 | 36.5 | 117.1 | ||
| YVP 180L-4 | 22 | 43.4 | 140.9 | ||
| YVP 200L-4 | 30 | 57.6 | 190.9 | ||
| YVP 225S-4 | 37 | 39.9 | 235.5 | ||
| YVP 225M-4 | 45 | 84.7 | 286.4 | ||
| YVP 250M-4 | 55 | 103 | 350.1 | 3-50 | |
| YVP 280S-4 | 75 | 140 | 477.7 | ||
| YVP 280M-4 | 90 | 167 | 572.9 | ||
| YVP 315S-4 | 110 | 201 | 700.2 | ||
| YVP 315M-4 | 132 | 241 | 840.3 | ||
| YVP 315L1-4 | 160 | 292 | 1018.5 | ||
| YVP 315L2-4 | 200 | 365 | 1273.2 |
| 機座號 Frame No |
基本安裝結構Basic installation structure |
派生的安裝形式Derivative installation pattern | ||||||||||
| B3 | B5 | B35 | V1 | V3 | V5 | V6 | B6 | B7 | B8 | V15 | VV36 | |
| 80-160 | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ | √ |
| 180-280 | √ | √ | √ | √ | _ | _ | _ | _ | _ | _ | _ | _ |
| 315 | √ | _ | √ | √ | _ | _ | _ | _ | _ | _ | _ | |
| 機座號 Frame No. |
安裝尺寸Installation dimensions | 外形尺寸External dimensions | ||||||||||||
| A | B | C | D | E | F | G | H | K | AB | AC | AD | HD | L | |
| YVP 80M | 125 | 100 | 50 | 19 | 40 | 6 | 15.5 | 80 | 10 | 165 | 175 | 145 | 220 | 370 |
| YVP 90S | 140 | 100 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 180 | 195 | 155 | 250 | 380 |
| YVP 90L | 140 | 125 | 56 | 24 | 50 | 8 | 20 | 90 | 10 | 180 | 195 | 155 | 250 | 410 |
| YVP 100L | 160 | 140 | 63 | 28 | 60 | 8 | 24 | 100 | 12 | 205 | 215 | 180 | 270 | 465 |
| YVP 112M | 190 | 140 | 70 | 28 | 60 | 8 | 24 | 112 | 12 | 230 | 240 | 190 | 300 | 480 |
| YVP 132S | 216 | 140 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 270 | 275 | 210 | 345 | 530 |
| YVP 132M | 216 | 178 | 89 | 38 | 80 | 10 | 33 | 132 | 12 | 270 | 275 | 210 | 345 | 570 |
| YVP 160M | 254 | 210 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 320 | 330 | 255 | 420 | 660 |
| YVP 160L | 254 | 254 | 108 | 42 | 110 | 12 | 37 | 160 | 15 | 320 | 330 | 255 | 420 | 715 |
| YVP 180M | 279 | 341 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 355 | 380 | 280 | 455 | 775 |
| YVP 180L | 279 | 279 | 121 | 48 | 110 | 14 | 42.5 | 180 | 15 | 355 | 380 | 280 | 455 | 815 |
| YVP 200L | 318 | 305 | 133 | 65 | 110 | 16 | 49 | 200 | 19 | 395 | 420 | 305 | 505 | 850 |
| YVP 225S | 356 | 286 | 149 | 80 | 140 | 18 | 53 | 225 | 19 | 435 | 470 | 335 | 560 | 885 |
| YVP 225M | 356 | 311 | 149 | 60 | 140 | 18 | 53 | 225 | 19 | 435 | 470 | 335 | 560 | 915 |
| YVP 250M | 406 | 349 | 168 | 65 | 140 | 18 | 58 | 250 | 24 | 490 | 510 | 370 | 615 | 980 |
| YVP 280S | 457 | 368 | 190 | 75 | 140 | 20 | 67.5 | 280 | 24 | 550 | 580 | 410 | 680 | 1085 |
| YVP 280M | 457 | 419 | 190 | 75 | 140 | 20 | 67.5 | 280 | 24 | 550 | 580 | 410 | 680 | 1135 |
| YVP 315S | 508 | 406 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | 635 | 645 | 530 | 845 | 1285 |
| YVP 315M | 508 | 457 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | 635 | 645 | 530 | 845 | 1395 |
| YVP 315L | 508 | 508 | 216 | 80 | 170 | 22 | 71 | 315 | 28 | 635 | 645 | 530 | 845 | 1395 |
