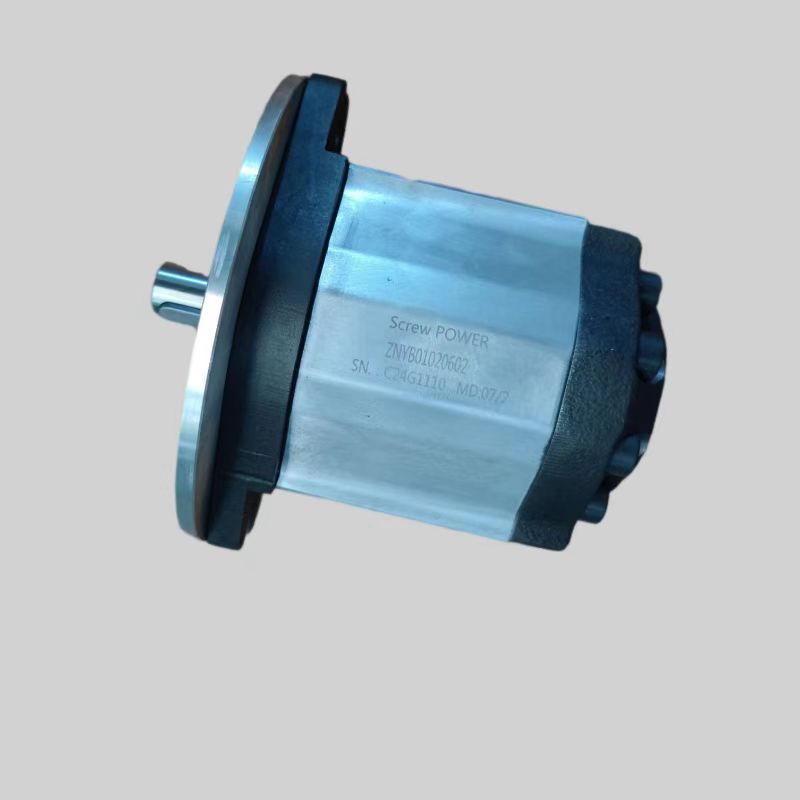

GR螺桿泵結構特點
1、由特殊形狀螺旋型面構成，是一種先進的容積泵。工作時，主動螺桿在原動機的帶動下轉動，其運動的密封腔室把液體由進口吸入并沿軸向連續無脈動的輸送到出口。在整個輸送過程中，由于密封腔的體積沒有發生變化，對所輸送的介質不壓縮，因此該泵運行平穩，噪音低、振動小，流量也穩定；
2、主、從動螺桿采用軸向低壓平衡。主、從動螺桿在運轉中處于受拉狀態，因而螺桿不易變形；從動螺桿由液壓力驅動旋轉，主、從動螺桿間無接觸，因此螺桿無磨損；
3、采用創新的結構設計，在滿足性能要求的前提下簡化整體設計，結構簡單、緊湊；
4、泵體采用外鋁內銅的雙層復合設計，將銅材質作為摩擦付材質，提高耐磨性和抗咬合性，提高產品的使用性能、延長使用壽命和擴大了產品的使用范圍；
5、對泵體的鑄造工藝進行創新設計，根據銅、鋁熔點的差異性并采用精密鑄造和壓力鑄造的方式實現泵體復合鑄造，滿足設計要求；
6、采用定位塊對主桿軸承進行定位，同時泵體內孔與定位塊固定孔同時加工出，提高了定位的可靠性和運行的穩定性，同時延長了產品的使用壽命；
7、在設計中安裝形式可根據用戶的要求進行更換，在進出口方向上每隔90°的旋轉角度上可任意布置，提高了泵機組的適用性，更加貼合用戶的使用；
8、采用機械密封和骨架油封的雙油封設計，降低漏油率，保證產品的正常使用和穩定工作；
9、由于結構的簡化設計，在安裝、拆卸以及維護上都極為方便。
SMT16B三螺桿泵全系列型號：
|
GR普通型三螺桿泵 |
5Bar壓力GR三螺桿泵 |
10Bar壓力GR三螺桿泵 |
15Bar壓力GR三螺桿泵 |
|
GR20 |
GR20 |
GR20 |
GR20 |
|
GR20SMT16B8L |
GR20SMT16B8LRF1 |
GR20SMT16B8LRF2 |
GR20SMT16B8LRF3 |
|
GR20SMT16B12L |
GR20SMT16B12LRF1 |
GR20SMT16B12LRF2 |
GR20SMT16B12LRF3 |
|
GR20SMT16B15L |
GR20SMT16B15LRF1 |
GR20SMT16B15LRF2 |
GR20SMT16B15LRF3 |
|
GR20 SMT16B20L |
GR20 SMT16B20LRF1 |
GR20 SMT16B20LRF2 |
GR20 SMT16B20LRF3 |
|
GR25 |
GR25 |
GR25 |
GR25 |
|
GR25SMT16B25L |
GR25SMT16B25LRF1 |
GR25SMT16B25LRF2 |
GR25SMT16B25LRF3 |
|
GR25SMT16B30L |
GR25SMT16B30LRF1 |
GR25SMT16B30LRF2 |
GR25SMT16B30LRF3 |
|
GR32 |
GR32 |
GR32 |
GR32 |
|
GR32SMT16B35L |
GR32SMT16B35LRF1 |
GR32SMT16B35LRF2 |
GR32SMT16B35LRF3 |
|
GR32SMT16B45L |
GR32SMT16B45LRF1 |
GR32SMT16B45LRF2 |
GR32SMT16B45LRF3 |
|
GR32SMT16B55L |
GR32SMT16B55LRF1 |
GR32SMT16B55LRF2 |
GR32SMT16B55LRF3 |
|
GR32SMT16B75L |
GR32SMT16B75LRF1 |
GR32SMT16B75LRF2 |
GR32SMT16B75LRF3 |
|
GR40 |
GR40 |
GR40 |
GR40 |
|
GR40SMT16B100L |
GR40SMT16B100LRF1 |
GR40SMT16B100LRF2 |
GR40SMT16B100LRF3 |
|
GR40SMT16B125L |
GR40SMT16B125LRF1 |
GR40SMT16B125LRF2 |
GR40SMT16B125LRF3 |
|
GR40SMT16B150L |
GR40SMT16B150LRF1 |
GR40SMT16B150LRF2 |
GR40SMT16B150LRF3 |
|
GR45 |
GR45 |
GR45 |
GR45 |
|
GR45SMT16B180L |
GR45SMT16B180LRF1 |
GR45SMT16B180LRF2 |
GR45SMT16B180LRF3 |
|
GR45SMT16B210L |
GR45SMT16B210LRF1 |
GR45SMT16B210LRF2 |
GR45SMT16B210LRF3 |
|
GR55 |
GR55 |
GR55 |
GR55 |
|
GR55SMT16B250L |
GR55SMT16B250LRF1 |
GR55SMT16B250LRF2 |
GR55SMT16B250LRF3 |
|
GR55SMT16B300L |
GR55SMT16B300LRF1 |
GR55SMT16B300LRF2 |
GR55SMT16B300LRF3 |
|
GR55SMT16B330L |
GR55SMT16B330LRF1 |
GR55SMT16B330LRF2 |
GR55SMT16B330LRF3 |
|
GR55SMT16B380L |
GR55SMT16B380LRF1 |
GR55SMT16B380LRF2 |
GR55SMT16B380LRF3 |
|
GR60 |
GR60 |
GR60 |
GR60 |
|
GR60SMT16B440L |
GR60SMT16B440LRF1 |
GR60SMT16B440LRF2 |
GR60SMT16B440LRF3 |
|
GR60SMT16B500L |
GR60SMT16B500LRF1 |
GR60SMT16B500LRF2 |
GR60SMT16B500LRF3 |
|
GR70 |
GR70 |
GR70 |
GR70 |
|
GR70SMT16B600L |
GR70SMT16B600LRF1 |
GR70SMT16B600LRF2 |
GR70SMT16B600LRF3 |
|
GR70SMT16B660L |
GR70SMT16B660LRF1 |
GR70SMT16B660LRF2 |
GR70SMT16B660LRF3 |
|
GR70SMT16B800L |
GR70SMT16B800LRF1 |
GR70SMT16B800LRF2 |
GR70SMT16B800LRF3 |
|
GR80 |
GR80 |
GR80 |
GR80 |
|
GR80SMT16B1000L |
GR80SMT16B1000LRF1 |
GR80SMT16B1000LRF2 |
GR80SMT16B1000LRF3 |
|
GR80SMT16B1200L |
GR80SMT16B1200LRF1 |
GR80SMT16B1200LRF2 |
GR80SMT16B1200LRF3 |
|
GR90 |
GR90 |
GR90 |
GR90 |
|
GR90SMT16B1500L |
GR90SMT16B1500LRF1 |
GR90SMT16B1500LRF2 |
GR90SMT16B1500LRF3 |
|
GR90SMT16B1700L |
GR90SMT16B1700LRF1 |
GR90SMT16B1700LRF2 |
GR90SMT16B1700LRF3 |
|
GR90SMT16B2000L |
GR90SMT16B2000LRF1 |
GR90SMT16B2000LRF2 |
GR90SMT16B2000LRF3 |
|
GR90SMT16B2200L |
GR90SMT16B2200LRF1 |
GR90SMT16B2200LRF2 |
GR90SMT16B2200LRF3 |
|
GR110 |
GR110 |
GR110 |
GR110 |
|
GR110SMT16B2300L |
GR110SMT16B2300LRF1 |
GR110SMT16B2300LRF2 |
GR110SMT16B2300LRF3 |
|
GR110SMT16B2500L |
GR110SMT16B2500LRF1 |
GR110SMT16B2500LRF2 |
GR110SMT16B2500LRF3 |
|
GR110SMT16B2800L |
GR110SMT16B2800LRF1 |
GR110SMT16B2800LRF2 |
GR110SMT16B2800LRF3 |
|
GR110SMT16B3200L |
GR110SMT16B3200LRF1 |
GR110SMT16B3200LRF2 |
GR110SMT16B3200LRF3 |
