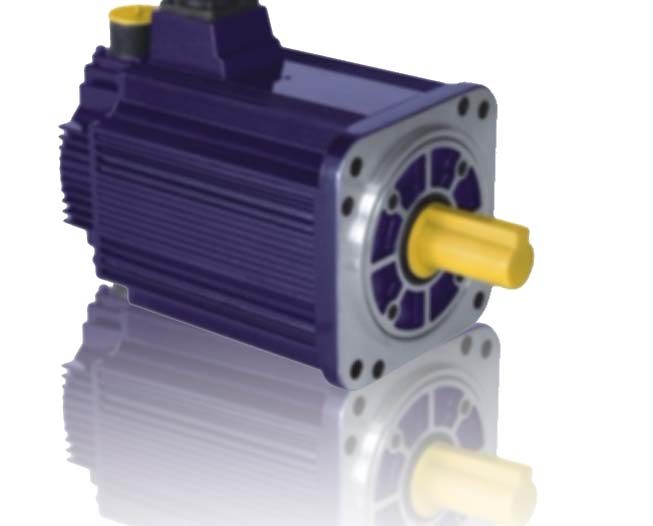

| 伺服電機型號 | Servo Motor Model | LH | LH130100AP | LH130150AP | LH130200AP |
| 額定輸出功率 | Reted Output Power | W | 1000 | 1500 | 2000.0 |
| 額定轉矩 | Rated Torque | N.M | 4.78 | 7.16 | 9.55 |
| 瞬間最大轉矩 | Instantantous | N.M | 14.3 | 21.5 | 28.7 |
| 額定電流 | Rated Current | Arms | 6.0 | 9.0 | 12.0 |
| 瞬間最大電流 | Instantantous Max Current | Arms | 18.0 | 27.0 | 36.0 |
| 額定轉速 | Rated Speed | r/min | 2000 | ||
| 最高轉速 | Max.Speed | r/min | 3000 | ||
| 轉子轉動慣量 | Rotor Moment Of Inertia | X10-4kg*m2 | 10(10.6) | 14.5(15.1) | 19(19.6) |
| 制動器額定電壓 | Brake Rate Voltage | DC24V±10% | |||
| 制動器額定功率 | Brake Rate Power | W | 19.0 | ||
| 制動器保持轉矩 | Brake Holding Torque | N.M | 10.0 | ||
| 編碼器 | Encoder | 標準Standrad | 增量式編碼器/Incremental Encoder:2500P/R | ||
| 耐熱等級 | Insulation Class | F | |||
| 環境溫度 | Ambient Temperature | 0～+40°C（不凍結/no freezing） | |||
| 環境濕度 | Ambient Humidity | 20%～80%RH(不結露/non-condensing) | |||
| 抗震性能 | Vibration | 24.5m/s2 | |||
| 保護方式 | Enclosure | 全封閉，自冷，IP65（除輸出軸承和連接器） Totally Enclosed,Self-cooled,IP65(Except for shaftopening and connectors) | |||
