SSD 固態(tài)硬盤為工控系統(tǒng)所使用的標準儲存解決方案。我們的SSD產(chǎn)品系列提供了各種不同規(guī)格，包含1.8吋、2.5吋及其他。???

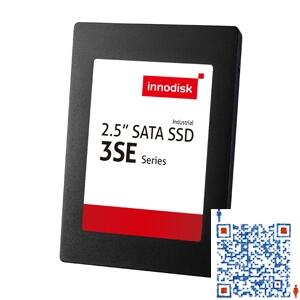

| Model Name | 2.5" SATA SSD 3SE |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | SLC |
| Type | 2.5" |
| Capacity | 4GB~256GB |
| Max. Channels | 4 |
| Sequential R/W (MB/sec, max.) | 490/430 |
| Max. Power Consumption | 3.0 W (5V x 600 mA ) |
| Thermal Sensor | ST- Optional / WT- Default |
| External DRAM Buffer | N |
| H/W Write Protect | N |
| iCell | N |
| ATA Security | Y |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 69.85 x 99.85 x 9.20 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
| Operation Temp. | 4GB | 8GB | 16GB | 32GB | 64GB | 128GB | 256GB | 512GB |
| Standard Grade (0°C ~ +70°C) | DES25-04GD07AC1DB | DES25-08GD06SCCQB | DES25-16GD06SCCQB | DES25-32GD06SCCQB | DES25-64GD06SCCQB | DES25-A28D06SCCQB | DES25-B56D06SCCQB | DES25-C12D06SCCQT |
| Industrial Grade (-40°C~+85°C) | DES25-04GD07AW1DB | DES25-08GD06SWCQB | DES25-16GD06SWCQB | DES25-32GD06SWCQB | DES25-64GD06SWCQB | DES25-A28D06SWCQB | DES25-B56D06SWCQB | DES25-C12D06SWCQT |
| Operation Temp. | 4GB | 8GB | 16GB | 32GB | 64GB | 128GB | 256GB | 512GB |
| Standard Grade (0°C ~ +70°C) | DES25-04GD07AC1DB | DES25-08GD06SCCQB | DES25-16GD06SCCQB | DES25-32GD06SCCQB | DES25-64GD06SCCQB | DES25-A28D06SCCQB | DES25-B56D06SCCQB | DES25-C12D06SCCQT |
| Industrial Grade (-40°C~+85°C) | DES25-04GD07AW1DB | DES25-08GD06SWCQB | DES25-16GD06SWCQB | DES25-32GD06SWCQB | DES25-64GD06SWCQB | DES25-A28D06SWCQB | DES25-B56D06SWCQB | DES25-C12D06SWCQT |
