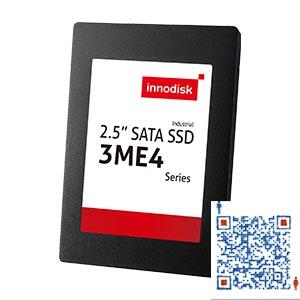

2.5" SATA SSD 3ME4

產品特色

2.5” SATA III soultion for industrial field
7mm height mechinicial design
DRAM-less, high-level data integrity
L3?architecture extends lifespan
Excellent IOPS boosts system perbance
Built-in thermal sensor
Support S.M.A.R.T, TRIM, NCQ and iData Guard

Overview:

Innodisk 2.5” SATA SSD 3ME4 is characterized by L3 architecture with the latest SATA III (6.0GHz) Marvell NAND controller. Innodisk’s exclusive L3 architecture is L2 architecture multiplied LDPC (Low Density Parity Check). L2 (Long Life) architecture is a 4K mapping algorithm that reduces WAF and features a real-time wear leveling algorithm to provide high perbance and prolong lifespan with exceptional reliability.

規格：

Model Name	2.5" SATA SSD 3ME4
Interface	SATA III 6.0 Gb/s
Flash Type	MLC
Type	2.5"
Capacity	8GB~256GB
Max. Channels	2
Sequential R/W (MB/sec, max.)	530/210
Max. Power Consumption	0.8 W (5V x 160 mA )
Thermal Sensor	Y
External DRAM Buffer	N
H/W Write Protect	N
iCell	N
ATA Security	Y
S.M.A.R.T.	Y
Dimension (WxLxH/mm)	69.85 x 100.10 x 6.9
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	>3 million hours
Storage Temperature	-55°C ~ +95°C
Operation Temperature	Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C

產品料號：

Operation Temp.	8GB	16GB	32GB	64GB	128GB	256GB
Standard Grade (0°C ~ +70°C)	DES25- 08GM41BC1SC	DES25-16GM41BC1SC DES25-16GM41BC1DC	DES25-32GM41BC1DC	DES25-64GM41BC1DC	DES25-A28M41BC1DC	DES25-B56M41BC1DC
Industrial Grade (-40°C~+85°C)	DES25- 08GM41BW1SC	DES25-16GM41BW1SC DES25- 16GM41BW1DC	DES25-32GM41BW1DC	DES25-64GM41BW1DC	DES25-A28M41BW1DC	DES25-B56M41BW1DC

Operation Temp.	8GB	16GB	32GB	64GB	128GB	256GB
Standard Grade (0°C ~ +70°C)	DES25- 08GM41BC1SC	DES25-16GM41BC1SC DES25-16GM41BC1DC	DES25-32GM41BC1DC	DES25-64GM41BC1DC	DES25-A28M41BC1DC	DES25-B56M41BC1DC
Industrial Grade (-40°C~+85°C)	DES25- 08GM41BW1SC	DES25-16GM41BW1SC DES25- 16GM41BW1DC	DES25-32GM41BW1DC	DES25-64GM41BW1DC	DES25-A28M41BW1DC	DES25-B56M41BW1DC
