工業級CF存儲卡

CF 閃存卡為使用于PATA接口的小型尺寸裝置，適用于各種工業以及任何惡劣的環境。

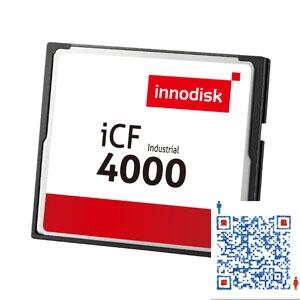

iCF 4000

產品特色

iSMART disk health monitoring
Inbligent error recovery system
Excellent data transfer speed
Mechanical design for anti-vibration

概述：

innodisk industrial compactflash 4000存儲卡（ICF 4000）產品提供高容量固態閃存，符合與IDE磁盤驅動器電氣兼容的真實IDE模式。原始的CF格式卡可用于任何具有CF插槽的系統。

InnoDisk Industrial CompactFlash 4000存儲卡旨在取代傳統的旋轉磁盤驅動器，是用于移動計算和工業工作場所的嵌入式固態數據存儲系統。Industrial CompactFlash?具有極其輕量、可靠、低調的外形。Industrial CompactFlash?4000（ICF 4000）支持?PIO（0-6）、多字DMA（0-2）、超DMA（0-4）傳輸模式、多扇區傳輸和LBA尋址。

規格：

Model Name	iCF 4000
Interface	PATA
Flash Type	SLC
Capacity	128MB~8GB
Max. Channels	2
Sequential R/W (MB/sec, max.)	40/20
Max. Power Consumption	0.73W(5V x 145mA) 0.42W(3.3V x 125mA)
H/W Write Protect	Optional
ATA Security	Y
S.M.A.R.T.	Y
Dimension (WxLxH/mm)	42.8 x 36.4 x 3.3
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	>3 million hours
Storage Temperature	-55°C ~ +95°C
Operation Temperature	Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C

產品料號：

Operation Temp.	128MB	256MB	512MB	1GB	2GB	4GB	8GB
Standard Grade (0°C ~ +70°C)	DC1M-128D31C1SB	DC1M-256D31C1SB	DC1M-512D31C1SB	DC1M-01GD31C1DB	DC1M-02GD31C1DB	DC1M-04GD31C1DB	DC1M-08GD31C1DB
Industrial Grade (-40°C ~ +85°C)	DC1M-128D31W1SB	DC1M-256D31W1SB	DC1M-512D31W1SB	DC1M-01GD31W1DB	DC1M-02GD31W1DB	DC1M-04GD31W1DB	DC1M-08GD31W1DB

Operation Temp.	128MB	256MB	512MB	1GB	2GB	4GB	8GB
Standard Grade (0°C ~ +70°C)	DC1M-128D31C1SB	DC1M-256D31C1SB	DC1M-512D31C1SB	DC1M-01GD31C1DB	DC1M-02GD31C1DB	DC1M-04GD31C1DB	DC1M-08GD31C1DB
Industrial Grade (-40°C ~ +85°C)	DC1M-128D31W1SB	DC1M-256D31W1SB	DC1M-512D31W1SB	DC1M-01GD31W1DB	DC1M-02GD31W1DB	DC1M-04GD31W1DB	DC1M-08GD31W1DB
