工業級CF存儲卡

CF 閃存卡為使用于PATA接口的小型尺寸裝置，適用于各種工業以及任何惡劣的環境。

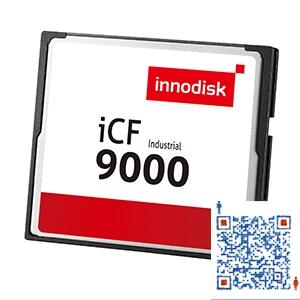

iCF 9000

產品特色

iSMART disk health monitoring
Inbligent error recovery system
Excellent data transfer speed
Write protection security
Enhanced power cycling management

概述：

innodisk industrial compactflash?9000存儲卡（ICF 9000）產品提供高容量固態閃存，其電氣符合與IDE磁盤驅動器電氣兼容的真實IDE模式。原始的CF格式卡可用于任何具有CF插槽的系統。

InnoDisk Industrial CompactFlash?9000存儲卡旨在取代傳統的旋轉磁盤驅動器，是用于移動計算和工業工作場所的嵌入式固態數據存儲系統。Industrial CompactFlash?具有極其輕量、可靠、低調的外形。Industrial CompactFlash?9000（ICF 9000）支持?PIO（0-6）、多字DMA（0-4）、超DMA（0-7）傳輸模式、多扇區傳輸和LBA尋址。

規格：

Model Name	iCF 9000
Interface	PATA
Flash Type	SLC
Capacity	1GB~64GB
Max. Channels	4
Sequential R/W (MB/sec, max.)	110/100
Max. Power Consumption	0.76W(3.3V x 230mA)
H/W Write Protect	Optional
ATA Security	Y
S.M.A.R.T.	Y
Dimension (WxLxH/mm)	42.8 x 36.4 x 3.3
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	>3 million hours
Storage Temperature	-55°C ~ +95°C
Operation Temperature	Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C

產品料號：

Operation Temp.	1GB	2GB	4GB	8GB	16GB	32GB	64GB
Standard Grade (0°C ~ +70°C)	DC1M-01GD71AC1DB	DC1M-02GD71AC1QB	DC1M-04GD71AC1QB	DC1M-08GD71AC1QB	DC1M-16GD71AC1QB	DC1M-32GD71AC1QB	DC1M-64GD71AC1QB
Industrial Grade (-40°C ~ +85°C)	DC1M-01GD71AW1DB	DC1M-02GD71AW1QB	DC1M-04GD71AW1QB	DC1M-08GD71AW1QB	DC1M-16GD71AW1QB	DC1M-32GD71AW1QB	DC1M-64GD71AW1QB

Operation Temp.	1GB	2GB	4GB	8GB	16GB	32GB	64GB
Standard Grade (0°C ~ +70°C)	DC1M-01GD71AC1DB	DC1M-02GD71AC1QB	DC1M-04GD71AC1QB	DC1M-08GD71AC1QB	DC1M-16GD71AC1QB	DC1M-32GD71AC1QB	DC1M-64GD71AC1QB
Industrial Grade (-40°C ~ +85°C)	DC1M-01GD71AW1DB	DC1M-02GD71AW1QB	DC1M-04GD71AW1QB	DC1M-08GD71AW1QB	DC1M-16GD71AW1QB	DC1M-32GD71AW1QB	DC1M-64GD71AW1QB
