工業級SD卡&MicroSD卡

工業等級、SD 2.0/SD 3.0卡的產品也同樣搭載iSMART技術，對于存儲裝置的狀態，用戶將具備更佳掌控力。

Overview:

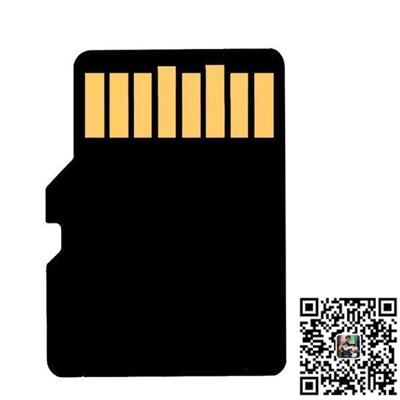

Innodisk MicroSD 3ME2 series, supporting class 10 with UHS-I (Except 8GB ), are specifically designed for industrial PC and bded applications. The 3.0 series SD card has latest firmware architecture and Flash algorithms, including superior wear leveling, and read disturb management ensuring highest reliability and endurance.

Innodisk MicroSD 3ME2 series provide wide range capacities from 8GB to 64GB with excellent quality MLC NAND Flash, and fully compliant to SD3.0, and SD2.0 specifications.

With its low power consumption and features above, Innodisk MicroSD 3ME2 series can be applied on industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile application.

概述：

Innodisk MicroSD 3ME2系列，支持10級UHS-I（8GB除外），專為工業PC和嵌入式應用程序設計。3.0系列SD卡擁有?固件架構和閃存算法，包括?磨損均衡和讀取干擾管理，確保了?可靠性和耐久性。

Innodisk MicroSD 3ME2系列提供從8GB到64GB的大范圍容量，具有優質的MLC NAND閃存，完全符合SD3.0和SD2.0規范。

Innodisk MicroSD 3ME2系列具有低功耗和以上特點，可應用于工業自動化、SBC（單板計算機）、醫療設備、信息、移動應用等領域。

規格：

Model Name	MicroSD Card 3ME2
Interface	SD 3.0
Flash Type	MLC
Capacity	8GB~64GB
Sequential R/W (MB/sec, max.)	76/32
Max. Power Consumption	0.7W (3.3V x 219mA)
Max. Channels	1
S.M.A.R.T.	Y
ATA Security	N
Dimension (WxLxH/mm)	11.0 x 15.0 x 1.0
Vibration	20G@7~2000Hz
Shock	1500G@0.5ms
MTBF	>3 million hours
Storage Temperature	-25°C ~ +85°C
Operation Temperature	Extended Grade: -25°C ~ +85°C

產品料號：

Operation Temp.	8GB	16GB	32GB	64GB
Standard Grade (-25°C ~ +85°C)	DESDM-08GE21SEASK	DESDM-16GE21SEASK	DESDM-32GE21SEASK	DESDM-64GE21SEASK
Industrial Grade (-40°C ~ +85°C)	DESDM-08GE21SWASK	DESDM-16GE21SWASK	DESDM-32GE21SWASK	DESDM-64GE21SWASK
