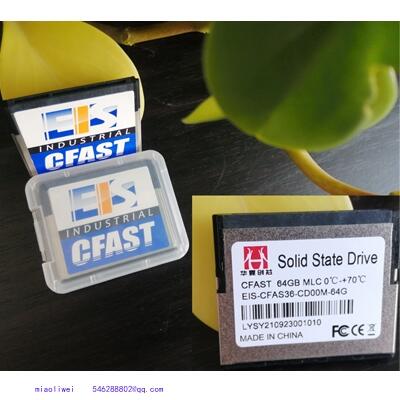

| Model Name | CFast?? |
| Interface | SATA III 6.0 Gb/s |
| Flash Type | MLC |
| Type | Standard |
| Capacity | 8GB~256GB |
| Sequential R/W (MB/sec, max.) | 530/210 |
| Max. Power Consumption | 1W |
| Max. Channels | 2 |
| Thermal Sensor | ST- Optional / WT- Default |
| H/W Write Protect | Optional |
| S.M.A.R.T. | Y |
| Dimension (WxLxH/mm) | 42.8 x 36.4 x 3.6 |
| Vibration | 20G@7~2000Hz |
| Shock | 1500G@0.5ms |
| MTBF | >3 million hours |
| Storage Temperature | -55°C ~ +95°C |
| Operation Temperature |
Standard Grade: 0°C ~ +70°C; Industrial Grade: -40°C ~ +85°C |
?
| Operation Temp. | 8GB | 16GB | 32GB | 64GB | 128GB | 256GB |
|
Standard Grade (0°C ~ +70°C) |
EIS-CFAS36-CD00M-8G | EIS-CFAS36-CD00M-16G | EIS-CFAS36-CD00M-32G | EIS-CFAS36-CD00M-64G | EIS-CFAS36-CD00M-128G | EIS-CFAS36-CD00M-256G |
|
Industrial Grade (-40°C ~+85°C) |
EIS-CFAS36-ID00M-8G | EIS-CFAS36-ID00M-16G | EIS-CFAS36-ID00M-32G | EIS-CFAS36-ID00M-64G | EIS-CFAS36-ID00M-128G | EIS-CFAS36-ID00M-256G |
?
