工業級SD卡 | MicroSD卡
工業等級 SD 2.0/SD 3.0卡的產品也同樣搭載iSMART技術，對于存儲裝置的狀態，用戶將具備更佳掌控力。

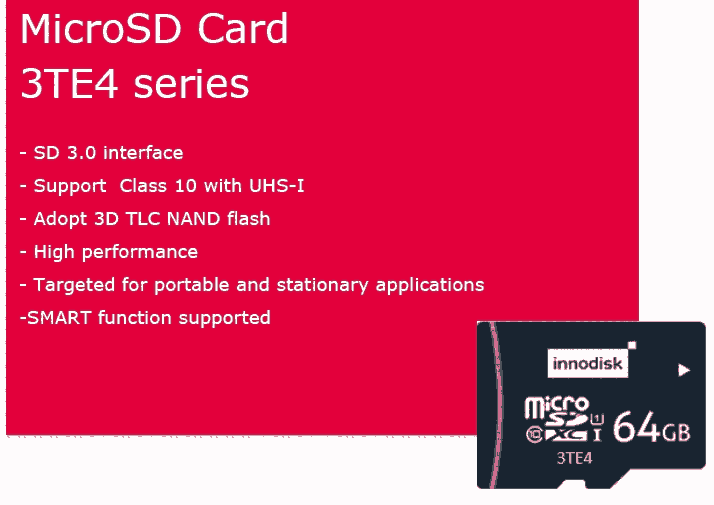

Innodisk MicroSD 3TE4 series, supporting class 10 with UHS-I, are specifically designed for industrial PC and bded applications. The 3.0 series SD card has latest firmware architecture and Flash algorithms, including superior wear leveling, and read disturb management ensuring highest reliability and endurance.
Innodisk MicroSD 3TE4系列支持10級UHS-I，專為工業PC和嵌入式應用而設計。3.0系列SD卡具有最新的固件體系結構和閃存算法，包括磨損均衡和讀取干擾管理，確保了最高的可靠性和耐久性。
Innodisk MicroSD 3TE4 series provide wide range capacities from 32GB to 512GB with excellent quality TLC NAND Flash, and fully compliant to SD3.0, and SD2.0 specifications.
Innodisk MicroSD 3TE4系列提供從32GB到512GB的各種容量，具有優質的TLC NAND閃存，完全符合SD3.0和SD2.0規范。
With its low power consumption and features above, Innodisk MicroSD 3TE4 series can be applied on industrial automation, SBC (single-board computer), medical equipment, infotainment, and mobile application.
Innodisk MicroSD 3TE4系列具有低功耗和以上特點，可應用于工業自動化、SBC（單板計算機）、移動應用。
?規格：
|
Model Name |
MicroSD Card 3TE4 |
|
Interface |
SD 3.0 |
|
Flash Type |
3D TLC |
|
Capacity |
32GB~512GB |
|
Sequential R/W (MB/sec, max.) |
75/31 (reference from MLC solution ) |
|
Max. Power Consumption |
0.7W ( reference from MLC solution ) |
|
Max. Channels |
1 |
|
S.M.A.R.T. |
Y |
|
Dimension (WxLxH/mm) |
11.0 x 15.0 x 1.0 |
|
Vibration |
20G@7~2000Hz |
|
Shock |
1500G@0.5ms |
|
MTBF |
>3 million hours |
|
Storage Temperature |
-25°C ~ +85°C |
|
Operation Temperature |
Extended Grade: -25°C ~ +85°C |
產品料號：
|
Operation Temp. |
32GB |
64GB |
128GB |
256GB |
512GB |
|
Standard Grade (-25°C ~ +85°C) |
DESDM-32GS06EE1SL |
DESDM-64GS06GE1SL |
DESDM-A28S06GE1SL |
DESDM-B56S06GE1SL |
DESDM-C12S06GE1SL |
|
Industrial Grade (-40°C ~ +85°C) |
DESDM-32GS06EW1SL |
DESDM-64GS06GW1SL |
DESDM-A28S06GW1SL |
DESDM-B56S06GW1SL |
DESDM-C12S06GW1SL |
