CF 閃存卡為使用于PATA接口的小型尺寸裝置，適用于各種工業以及任何惡劣的環境。
產品特色

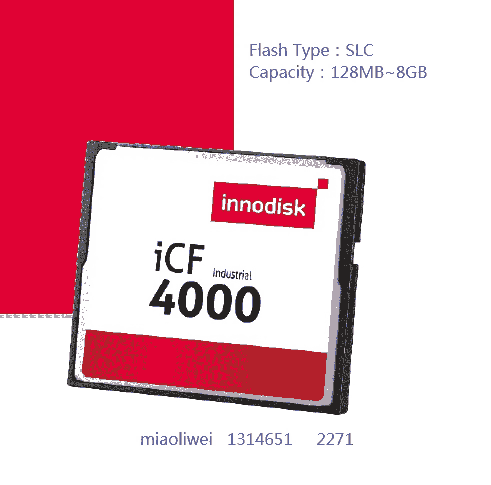

The Innodisk Industrial CompactFlash? 1ME Memory Card (iCF 1ME) products provide high capacity?The Innodisk Industrial CompactFlash? 4000 Memory Card (iCF 4000) products provide high capacity solid-state flash memory that electrically complies with the True IDE Mode that is electrically compatible with an IDE disk drive. The original CF bbbb factor card can be used in any system that has a CF slot.
Innodisk?Industrial?CompactFlash?4000?Memory?Card?(iCF?4000)產品提供高容量固態閃存，電遵從True?IDE模式，與IDE磁盤驅動器電兼容。原始的CF形式因子卡可用于任何具有CF插槽的系統。
Designed to replace traditional rotating disk drives, Innodisk Industrial CompactFlash 4000 Memory Cards are bded solid-state data storage systems for mobile computing and the industrial work place. The Industrial CompactFlash? features an extremely lightweight, reliable, low-profile bbbb factor. Industrial CompactFlash? 4000 (iCF 4000) support advanced PIO (0-6), Multiword DMA (0-2), Ultra DMA (0-4) transfer mode, multi-sector transfers, and LBA addressing.
Innodisk?Industrial?CompactFlash?4000內存卡旨在取代傳統的旋轉磁盤驅動器，是嵌入式固態數據存儲系統，適用于移動計算和工業工作場所。Industrial?CompactFlash?具有極其輕量化、可靠、低調的外形。工業CompactFlash?4000?(iCF?4000)支持高級PIO(0-6)、Multiword?DMA(0-2)、Ultra?DMA(0-4)傳輸模式、多扇區傳輸和LBA尋址。
規格：
|
Model Name |
iCF 4000 |
|
Interface |
PATA |
|
Flash Type |
SLC |
|
Capacity |
128MB~8GB |
|
Sequential R/W (MB/sec, max.) |
40/20 |
|
Max. Power Consumption |
0.73W(5V x 145mA) |
|
Max. Channels |
2 |
|
H/W Write Protect |
Optional |
|
ATA Security |
Y |
|
S.M.A.R.T. |
Y |
|
Dimension (WxLxH/mm) |
42.8 x 36.4 x 3.3 |
|
Vibration |
20G@7~2000Hz |
|
Shock |
1500G@0.5ms |
|
MTBF |
>3 million hours |
|
Storage Temperature |
-55°C ~ +95°C |
|
Operation Temperature |
Standard Grade: 0°C ~ +70°C; |
產品料號：
|
Operation? ?Temp. |
128MB |
256MB |
512MB |
1GB |
2GB |
4GB |
8GB |
|
Standard Grade |
DC1M-128D31C1SB |
DC1M-256D31C1SB |
DC1M-512D31C1SB |
DC1M-01GD31C1DB |
DC1M-02GD31C1DB |
DC1M-04GD31C1DB |
DC1M-08GD31C1DB |
|
Industrial Grade |
DC1M-128D31W1SB |
DC1M-256D31W1SB |
DC1M-512D31W1SB |
DC1M-01GD31W1DB |
DC1M-02GD31W1DB |
DC1M-04GD31W1DB |
DC1M-08GD31W1DB |
?
