宜鼎彈性擴充的通訊卡模塊系列，可針對工業系統提供穩定連接及帶寬，并滿足物聯網下裝置互連的需求。

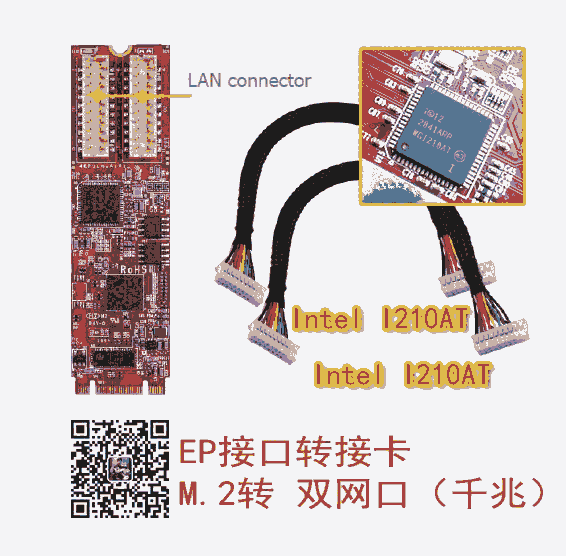

| Module Name | EGPL-G201 |
| Module Type | M.2 to Dual GbE LAN Module |
| Function | LAN |
| bbbb Factor | M.2 2280 B-M |
| bbbbb I/F | PCI Express 2.1 x 1 |
| Output I/F | Dual GbE LAN |
| Output connector | RJ45 x 2 |
| Power Consumption | 1.485W (3.3V x 450mA) |
| Dimensions (W x L x H/mm) | 22 x 80 x 9.3 |
| Temperature |
Operation: STD temp: 0°~70°C; W/T temp: -40°C ~ +85°C Storage: -55°C ~ +95°C |
| Environment |
Vibration: 5G @7~2000Hz Shock: 50G @ 0.5ms |
| Notes |
Please download driver from MyInnodisk website. Windows: XP(32bit), 7(32/64bit), 8/8.1(32/64 bit), 10(32/64bit) Linux: kernel 2.4 series, 2.6.x and 3.x version. |
| P/N | Description |
| EGPL-G201-C1 | Terminal mounting hole, Standard Temp. |
| EGPL-G201-W1 | Terminal mounting hole , Wide Temp. |
| EGPL-G201-C2 | Bracket, Standard Temp. |
| EGPL-G201-W2 | Bracket, Wide Temp. |
