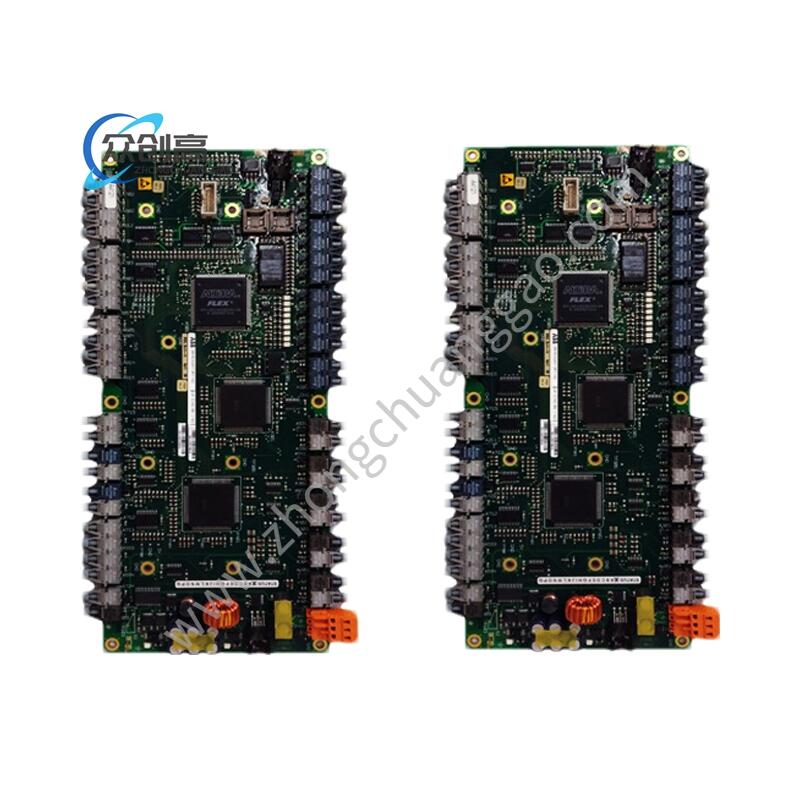

ABB UFC719AE01 3BHB003041R0101
密度繼電器在輸入電路內電流的作用下，由機械部件的相對運動產生預定響應的一種繼電器。
它包括直流電磁繼電器、交流電磁繼電器、磁保持繼電器、較化繼電器、舌簧繼電器,節能功率繼電器。
(1)直流電磁繼電器：輸入電路中的控制電流為直流的電磁繼電器。
(2)交流電磁繼電器：輸入電路中的控制電流為交流的電磁繼電器。
(3)磁保持繼電器：將磁鋼引入磁回路，繼電器線圈斷電后，繼電器的銜鐵仍能保持在線圈通電時的狀態，具有兩個穩定狀態。
(4)較化繼電器：狀態改變?nèi)Q于輸入激勵量極性的一種直流繼電器。
(5)舌簧繼電器：利用密封在管內，具有觸點簧片和銜鐵磁路雙重作用的舌簧的動作來開、閉或轉換線路的繼電器。
(6)節能功率繼電器:輸入電路中的控制電流為交流的電磁繼電器,但它的電流大(一般30-100A),體積小, 節電功能.
2.固態繼電器 abb密度繼電器1HSB495663-1
輸入、輸出功能由電子元件完成而無機械運動部件的一種繼電器。
3.時間繼電器
當加上或除去輸入信號時，輸出部分需延時或**到規定的時間才閉合或斷開其被控線路的繼電器。
4.溫度繼電器
當外界溫度達到規定值時而動作的繼電器.
5.風速繼電器
當風的速度達到一定值時，被控電路將接通或斷開。
6.加速度繼電器
當運動物體的加速度達到規定值時，被控電路將接通或斷開。
Density relay is a type of relay that generates a predetermined response from the relative motion of mechanical components under the b of current in the b circuit.
It includes DC electromagnetic relay, AC electromagnetic relay, magnetic holding relay, comparative relay, tongue spring relay, and energy-saving power relay.
(1) DC electromagnetic relay: An electromagnetic relay in which the control current in the b circuit is DC.
(2) AC electromagnetic relay: An electromagnetic relay in which the control current in the b circuit is AC.
(3) Magnetic retention relay: Introduce magnetic steel into the magnetic circuit, and after the relay coil is powered off, the armature of the relay can still maintain the state when the coil is energized, with two stable states.
(4) Comparison relay: A DC relay whose state changes depending on the polarity of the b excitation quantity.
(5) Tongue spring relay: A relay that uses the b of a tongue spring sealed in a tube, with a dual effect of contact spring and armature magnetic circuit to open, close, or switch circuits.
(6) Energy saving power relay: An electromagnetic relay in which the control current in the b circuit is AC, but it has a large current (usually 30-100A), small size, and energy-saving function
2. Solid state relay abb density relay 1HSB495663-1
A relay whose b and output functions are completed by electronic components without mechanical moving components.
3. Time relay
When adding or removing b signals, the output part needs to delay or * * to the specified time before closing or disconnecting the relay of its controlled circuit.
4. Temperature relay
A relay that operates when the external temperature reaches a specified value
5. Wind speed relay
When the speed of the wind reaches a certain value, the controlled circuit will be connected or disconnected.
6. Acceleration relay
When the acceleration of a moving b reaches the specified value, the controlled circuit will be connected or disconnected.
