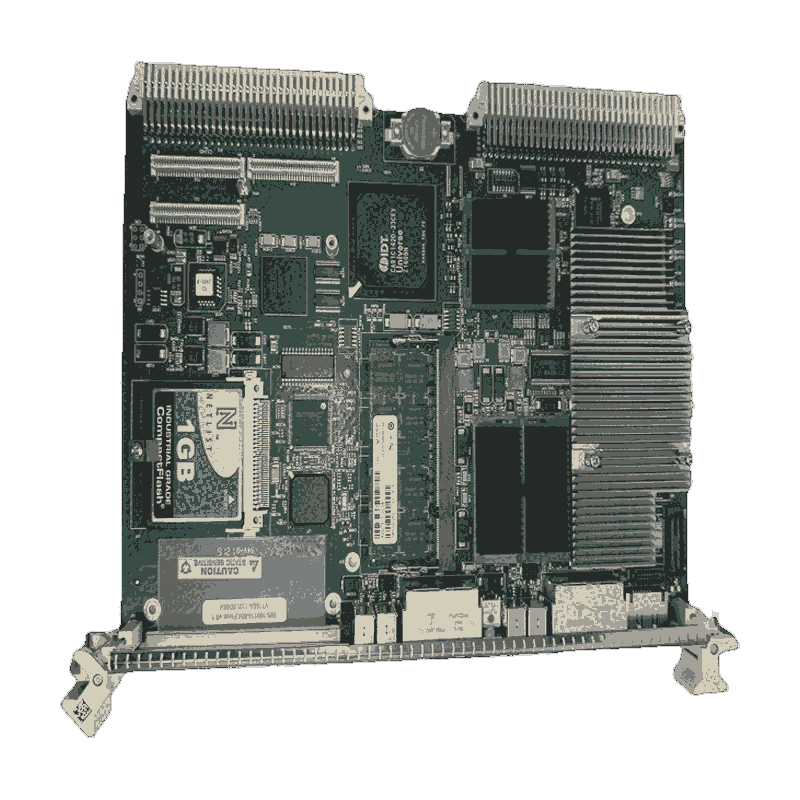

GE 8601-FT-NI
冗余內存交換單元硬件故障
奇偶故障或者VME總線故障被認為是RMX模塊的硬件故障。發生此類故障時會執行下列操作:
■失去選項模塊或者冗余連接硬件故障會被被記錄到PLC故障列表中。
■倆個單元都記錄冗余連接通訊故障
■所有RMX模塊的指燈關斷
■置位關聯的模塊故障位置參數(例如SLOT__00XX故障接點被置位，其中XX是RMX模塊中的槽號。
■通訊冗余連接不再使用。如果其它連接仍然在使用，那條連接會用來作其它的數據傳輸，單元仍然處于同步狀態。如果其它冗余連接都不可用并且每個單元都在run模式下，那個單元當做非同步的激活單元使用。電源必須被重新上電來使故障的RMX模塊重新投入使用。
冗余連接通訊失敗
下面的錯誤會被報告為冗余連接失敗:
■另一個單元掉電或者發生錯誤導致通訊失敗。
1倆個RMX模塊之間的其中一條或者倆條電纜都發生錯誤或者斷線。
■連接倆個RMX模塊的光纖發生錯誤導致網絡錯誤。(這包括數據校驗不匹配，協議錯誤和錯誤的數據包)。
另一個CPU為在失敗等待時間內達到下一一個同步點。
發生冗余連接通訊故障時會執行下面的動作:
1.冗余連接通訊失敗或者失敗等待超時故障會被記錄在倆個單元中的PLC故障列表中。
2.倆個RMX模塊的連接正常指示燈熄滅。
3.置位關聯的模塊故障位置參數(例如SLOT_ _00XX故障接點被置位，其中XX是RMX模塊中的槽號。)
4.通訊冗余連接不再使用。如果另-條連接還在運行，那條連接會用來作其它的數據傳輸，單元仍然處于同步狀態。如果其它冗余連接都不可用并且每個單元都在run模式下，那個單元當做非同步的激活單元使用。
如果RMX模塊的OK指示燈還處于ON狀態，連接可以通過重新上電一次或者使用硬件配置來保存。如果其中有OK指示燈變成OFF，必須重新上電來保存配置到RMX模塊。
