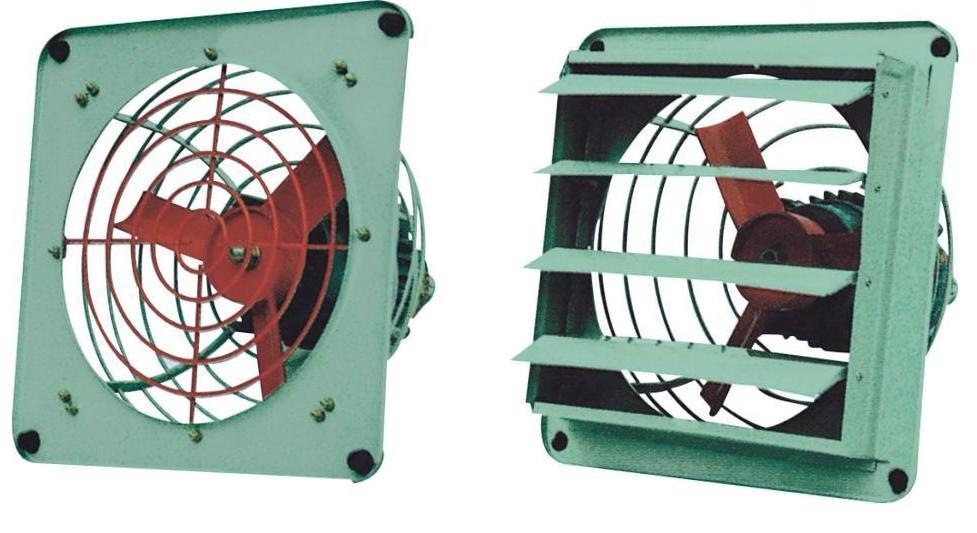

BCF系列防爆壁式排風扇(1T B)
防爆壁式排風扇
適用范圍Application
區、2區危場所。
IIA、IIB、類爆竹性氣體環境.
Can be used in Zone 1 and Zone 2one 2 dangerous places.
Can be used in IIA,IIB 、group explosive atmosphere.
產品特點 Features 型號含義Model implication
防爆排風扇由電機、葉片等組成.
外形美觀、安裝架采用一體式,安全可靠.
帶有減振裝置,運行噪音低.
鋼管布線.
符合GB3836-2000,IEC60079 標準要求.
Explosion-proof ventilating fan consists of motor and blade etc.
Aesthetic appearance,integrate one-body assemble frame,safe and secure.
With damping device and low-operacting noise.
Conduit wiring.
Suitable for GB3836-2000,IEC60079 standard request.
主要技術參數 Main technical beters
產品型號Type
額定電壓（V）Ratedvoltage
葉輪直徑Impeller diameter 功率（Kw)Power 主軸轉數（r/min)
Cyle speed of shaft 進線口螺紋（G"）Inlet’s thread 電纜外徑（Φ,mm）
Cable’s outer diameter 防爆標志Ex-mark
CBPS-300 380
220 300 0.18 1450 3/4 10-14 Exd II BT4
CBPS-400 400 0.37
