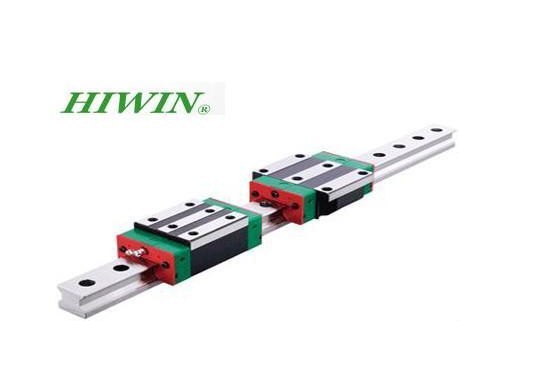

HIWIN直線導軌系為一種滾動導引，借由鋼珠在滑塊與導軌之間作無限滾動循環，負載平臺能沿著導軌輕易地以高精度作線性運動。與傳統的滑動導引相比較，滾動導引的摩擦系數可降低至原來的1/50，由于啟動的摩擦力大大減少，相對的較少無效運動發生，故能輕易達到μm級進給及定位。再加上滑塊與導軌間的束制單元設計，使得直線導軌可同時承受上下左右等各方向的負荷，上述陳列特點并非傳統滑動導引所能比擬，因此機臺若能派和滾珠螺桿，使用直線導軌作導引，必能大幅提高設備精度與機械效能。
HIWIN直線導軌常用型號
HGH15CA HGH20CA HGH25CA HGH30CA HGH35CA HGH45CA HGH55CA HGH65CA
HGW15CA HGW20CA HGW25CA HGW30CA HGW35CA HGW45CA HGW55CA HGW65CA
HGW15CC HGW20CC HGW25CC HGW30CC HGW35CC HGW45CC HGW55CC HGW65CC
HGH20HA HGH25HA HGH30HA HGH35HA HGH45HA HGH55HA HGH65HA
HGW20HC HGW25HC HGW30HC HGW35HC HGW45HC HGW55HC HGW65HC
HGW20HA HGW25HA HGW30HA HGW35HA HGW45HA HGW55HA HGW65HA
EGH15CA EGH20CA EGH25CA EGH30CA EGH15SA EGH20SA EGH25SA EGH30SA
EGW15CA EGW20CA EGW25CA EGW30CA EGW15SA EGW20SA EGW25SA EGW30SA
MGN7C MGN9C MGN12C MGN15C MGN7H MGN9H MGN12H MGN15H
MGW7C MGW9C MGW12C MGW15C MGW7H MGW9H MGW12H MGW15H
