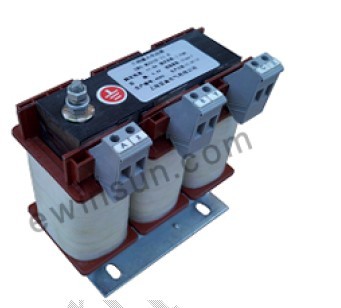

M系列進線電抗器(電網電壓3AC380V～480V)50/60HZ
序號 參考變頻
器功率KW 西門子M440變
頻器型號型號 西門子電抗器型號 昱高電抗器型號
1 0.37 6SE6440-2UD13-7AA1 6SE6400-3CC00-2AD3 SWC-M331B-1.9
2 0.55 6SE6440-2UD15-5AA1
3 0.75 6SE6440-2UD17-5AA1 6SE6400-3CC00-4AD3 SWC-M331B-3.5
4 1.1 6SE6440-2UD21-1AA1
5 1.5 6SE6440-2UD21-5AA1 6SE6400-3CC00-6AD3 SWC-M331B-4.8
6 2.2 6SE6440-2UD22-2BA1 6SE6400-3CC01-0BD3 SWC-M331B-9
7 3 6SE6440-2UD23-0BA1
8 4 6SE6440-2UD24-0BA1 6SE6400-3CC01-4BD3 SWC-M331B-11.6
9 5.5 6SE6440-2UD25-5CA1 6SE6400-3CC02-2CD3 SWC-M331B-25
10 7.5 6SE6440-2UD27-5CA1
11 11 6SE6440-2UD31-1CA1 6SE6400-3CC03-5CD3 SWC-M331B-31.3
12 15 6SE6440-2UD31-5DA1 6SE6400-3CC04-4DD0 SWC-M331B-47
13 18.5 6SE6440-2UD31-8DA1
14 22 6SE6440-2UD32-2DA1 6SE6400-3CC05-2DD0 SWC-M331B-63
15 30 6SE6440-2UD33-0EA1 6SE6400-3CC08-3ED0 SWC-M331B-94
16 37 6SE6440-2UD33-7EA1
17 45 6SE6440-2UD34-5FA1 6SE6400-3CC11-2FD0 SWC-M331B-151
18 55 6SE6440-2UD35-5FA1
19 75 6SE6440-2UD37-5FA1 6SE6400-3CC11-7FD0 SWC-M331B-186
20 90 6SE6440-2UD38-8FA1 6SL3000-0CE32-3AA0 SWC-M331B-224
21 110 6SE6440-2UD41-1FA1 6SL3000-0CE32-8AA0 SWC-M331B-278
22 132 6SE6440-2UD41-3GA1 6SL3000-0CE33-3AA0 SWC-M331B-331
23 160 6SE6440-2UD41-6GA1 6SL3000-0CE35-1AA0 SWC-M331B-508
24 200 6SE6440-2UD42-0GA1
M系列輸出電抗器(電網電壓3AC380V～480V)50/60HZ
序號 參考變頻
器功率KW 西門子M440變
頻器型號型號 西門子電抗器型號 昱高電抗器型號
1 0.37 6SE6440-2UD13-7AA1 6SE6400-3TC00-4AD2 SWC-M330B-4.5
2 0.55 6SE6440-2UD15-5AA1
3 0.75 6SE6440-2UD17-5AA1
4 1.1 6SE6440-2UD21-1AA1
5 1.5 6SE6440-2UD21-5AA1
6 2.2 6SE6440-2UD22-2BA1 6SE6400-3TC01-0BD3 SWC-M330B-10
7 3 6SE6440-2UD23-0BA1
8 4 6SE6440-2UD24-0BA1
9 5.5 6SE6440-2UD25-5CA1 6SE6400-3TC03-2CD3 SWC-M330B-32
10 7.5 6SE6440-2UD27-5CA1
11 11 6SE6440-2UD31-1CA1
12 15 6SE6440-2UD31-5DA1 6SE6400-3TC05-4DD0 SWC-M330B-68
13 18.5 6SE6440-2UD31-8DA1 6SE6400-3TC03-8DD0 SWC-M330B-68
14 22 6SE6440-2UD32-2DA1 6SE6400-3TC05-4DD0 SWC-M330B-68
15 30 6SE6440-2UD33-0EA1 6SE6400-3TC08-0ED0 SWC-M330B-90
16 37 6SE6440-2UD33-7EA1 6SE6400-3TC07-5ED0 SWC-M330B-104
17 45 6SE6440-2UD34-5FA1 6SE6400-3TC14-5FD0 SWC-M330B-178
19 55 6SE6440-2UD35-5FA1 6SE6400-3TC15-4FD0 SWC-M330B-178
18 75 6SE6440-2UD37-5FA1 6SE6400-3TC14-5FD0 SWC-M330B-178
20 90 6SE6440-2UD38-8FA1 6SL3000-2BE32-1AA0 SWC-M330B-210
21 110 6SE6440-2UD41-1FA1 6SL3000-2BE32-6AA0 SWC-M330B-260
22 132 6SE6440-2UD41-3GA1 6SL3000-2BE33-2AA0 SWC-M330B-310
23 160 6SE6440-2UD41-6GA1 6SL3000-2BE33-8AA0 SWC-M330B-380
24 200 6SE6440-2UD42-0GA1 6SL3000-2BE35-0AA0 SWC-M330B-490
