| PTC-101-S-ST-HV | 10/100BaseT(X)轉100BaseFX光電轉換器，單模，ST接頭，1路獨立電源(88-300 VDC或85-264 VAC)，操作溫度-40 ~ 85 °C | |
| PTC-101-S-LC-HV | 10/100BaseT(X)轉100BaseFX光電轉換器，單模，LC接頭，1路獨立電源(88-300 VDC或85-264 VAC)，操作溫度-40 ~ 85 °C | |
| PTC-101-M-ST-HV | 10/100BaseT(X)轉100BaseFX光電轉換器，多模，ST接頭，1路獨立電源(88-300 VDC或85-264 VAC)，操作溫度-40 ~ 85 °C | |
| PTC-101-M-LC-HV | 10/100BaseT(X)轉100BaseFX光電轉換器，多模，LC接頭，1路獨立電源(88-300 VDC或85-264 VAC)，操作溫度-40 ~ 85 °C | |
| PTC-101-S-SC-HV | 10/100BaseT(X)轉100BaseFX光電轉換器，單模，SC接頭，1路獨立電源(88-300 VDC或85-264 VAC)，操作溫度-40 ~ 85 °C | |
| PTC-101-S-LC-LV | 10/100BaseT(X)轉100BaseFX光電轉換器，單模，LC接頭，雙冗余電源輸入(20-70 VDC)，操作溫度-40 ~ 85 °C | |
| PTC-101-S-ST-LV | 10/100BaseT(X)轉100BaseFX光電轉換器，單模，ST接頭，雙冗余電源輸入(20-70 VDC)，操作溫度-40 ~ 85 °C | |
| PTC-101-M-SC-HV | 10/100BaseT(X)轉100BaseFX光電轉換器，多模，SC接頭，1路獨立電源(88-300 VDC或85-264 VAC)，操作溫度-40 ~ 85 °C | |
| PTC-101-M-LC-LV | 10/100BaseT(X)轉100BaseFX光電轉換器，多模，LC接頭，雙冗余電源輸入(20-70 VDC)，操作溫度-40 ~ 85 °C | |
| PTC-101-S-SC-LV | 10/100BaseT(X)轉100BaseFX光電轉換器，單模，SC接頭，雙冗余電源輸入(20-70 VDC)，操作溫度-40 ~ 85 °C | |
| PTC-101-M-ST-LV | 10/100BaseT(X)轉100BaseFX光電轉換器，多模， ST接頭，雙冗余電源輸入(20-70 VDC)，操作溫度-40 ~ 85 °C | |
| PTC-101-M-SC-LV | 10/100BaseT(X)轉100BaseFX光電轉換器，多模，SC接頭，雙冗余電源輸入(20-70 VDC)，操作溫度-40 ~ 85 °C |

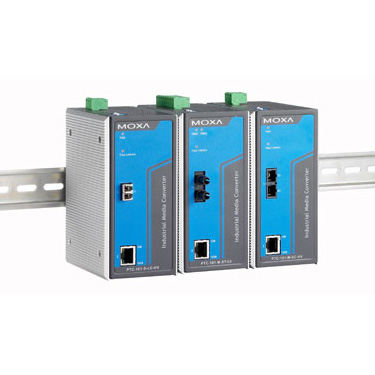

PTC-101支持10/100BaseT(X)和100BaseFX之間的信號轉換，配置SC, ST或LC接口。PTC-101無需額外布線，支持IEEE 802.3以及IEEE 802.3u標準，全/半雙工，自動檢測MDI/MDI–X，為您提供完整的工業以太網解決方案。
