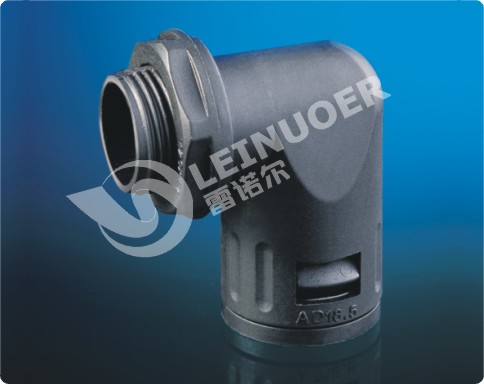

產品代碼: LNE-SM-W
產品材質: PA尼龍（polyamide）
螺紋規格: 公制螺紋（Mefric）/德制螺紋（PG）
工作溫度: -40~＋110℃
顏 色: 黑色，其他顏色可以定做
特 性: 內鎖扣和本體特殊設計，裝卸只需撥插無需工具；
使用方法: LNE-SM-W型軟管直角接頭是軟管的配套產品，可接入設備箱體上，也可以根據選用螺紋接入進出口為內螺紋的電動設備上，只需軟管插入接口即可。
| 型 號 | AD適配軟管外徑尺寸 | 螺紋規格公制 | 螺紋外徑 | I(mm) | C(mm) | E(mm) | F(mm) |
|---|---|---|---|---|---|---|---|
| LNE-SM-W-M12 | AD10.0 | M12x1.5 | 12.0 | 9.0 | 10 | 32 | 16.0 |
| LNE-SM-W-M16 | AD11.6 | M16x1.5 | 16.0 | 11.0 | 10 | 34.5 | 20.0 |
| LNE-SM-W-M16 | AD13.0 | M16x1.5 | 16.0 | 11.0 | 10 | 34.5 | 20.0 |
| LNE-SM-W-M18 | AD13.0 | M18 x1.5 | 18.0 | 10.0 | 10 | 37.5 | 24.3 |
| LNE-SM-W-M20 | AD13.0 | M20x1.5 | 20.0 | 13.0 | 10 | 37.5 | 24.3 |
| LNE-SM-W-M16 | AD15.8 | M16x1.5 | 16.0 | 12.0 | 10 | 37.5 | 24.3 |
| LNE-SM-W-M18 | AD15.8 | M18x1.5 | 18.0 | 12.0 | 10 | 37.5 | 24.3 |
| LNE-SM-W-M20 | AD15.8 | M20x1.5 | 20.0 | 15.0 | 10 | 37.5 | 24.3 |
| LNE-SM-W-M20 | AD18.5 | M20x1.5 | 20.0 | 16.0 | 11.5 | 43.5 | 27.0 |
| LNE-SM-W-M20 | AD21.2 | M20x1.5 | 20.0 | 15.0 | 13 | 49 | 31.0 |
| LNE-SM-W-M24 | AD21.2 | M24x1.5 | 24.0 | 17.0 | 13 | 49 | 31.0 |
| LNE-SM-W-M25 | AD21.2 | M25x1.5 | 25.0 | 16.0 | 13 | 49 | 31.0 |
| LNE-SM-W-M25 | AD25.0 | M25x1.5 | 25.0 | 19.5 | 13 | 52 | 32.0 |
| LNE-SM-W-M25 | AD28.5 | M25x1.5 | 25.0 | 19.5 | 13 | 57 | 34.0 |
| LNE-SM-W-M27 | AD28.5 | M27 x2.0 | 27.0 | 23.0 | 13 | 57 | 34.0 |
| LNE-SM-W-M30 | AD28.5 | M30x2.0 | 30.0 | 23.0 | 13 | 57 | 34.0 |
| LNE-SM-W-M32 | AD34.5 | M32x1.5 | 32.0 | 27.0 | 14.5 | 64 | 43.0 |
| LNE-SM-W-M36 | AD34.5 | M36x2.0 | 36.0 | 29.0 | 14.5 | 64 | 43.0 |
| LNE-SM-W-M40 | AD34.5 | M40x1.5 |
40.0 | 30.0 | 14.5 | 64 | 43.0 |
| LNE-SM-W-M40 | AD42.5 | M40x1.5 | 40.0 | 35.0 | 14.5 | 72 | 50.0 |
| LNE-SM-W-M48 | AD42.5 | M48x2.0 | 48.0 | 38.0 | 14.5 | 72 | 50.0 |
| LNE-SM-W-M50 | AD54.5 | M50x1.5 | 50.0 | 44.0 | 16 | 84 | 64.0 |
| LNE-SM-W-M60 | AD54.5 | M60x1.5 | 60.0 | 53.0 | 16 | 84 | 64.0 |
| 型 號 | AD適配軟管外徑尺寸 | 螺紋規格公制 | 螺紋外徑 | I(mm) | C(mm) | E(mm) | F(mm) |
|---|---|---|---|---|---|---|---|
| LNE-SM-W-PG7 | AD10.0 | PG7 | 12.5 | 9.0 | 10 | 32.0 | 16.0 |
| LNE-SM-W-PG9 | AD13.0 | PG9 | 15.2 | 11.6 | 10 | 34.5 | 20.0 |
| LNE-SM-W-PG11 | AD15.8 | PG11 | 18.6 | 13.5 | 10 | 37.5 | 24.0 |
| LNE-SM-W-PG13.5 | AD18.5 | PG13.5 | 20.4 | 16.0 | 11 | 43.5 | 27.0 |
| LNE-SM-W-PG16 | AD21.2 | PG16 | 22.5 | 17.5 | 13 | 49.0 | 31.0 |
| LNE-SM-W-PG21 | AD28.5 | PG21 | 28.3 | 23.0 | 13 | 57.0 | 34.0 |
| LNE-SM-W-PG29 | AD34.5 | PG29 | 37.0 | 30.0 | 14.5 | 64.0 | 43.0 |
| LNE-SM-W-PG36 | AD42.5 | PG36 | 47.0 | 38.0 | 14.5 | 72.0 | 50.0 |
| LNE-SM-W-PG48 | AD54.5 | PG48 | 59.3 | 52.0 | 16 | 84.0 | 64.0 |
| 型 號 | AD適配軟管外徑尺寸 | 螺紋規格公制 | 螺紋外徑 | I(mm) | C(mm) | E(mm) | F(mm) |
|---|---|---|---|---|---|---|---|
| LNE-SM-W-1/2 | 21.2 | G1/2 | 22.5 | 15.0 | 13.0 | 49.0 | 31.0 |
| LNE-SM-W-1/2 | 25.0 | G1/2 | 25.0 | 15.0 | 13.0 | 52.0 | 32.0 |
| LNE-SM-W-3/4 | 28.5 | G3/4 | 28.3 | 21.0 | 13.0 | 57.0 | 34.0 |
| LNE-SM-W-1″ | 34.5 | G1″ | 37.0 | 32.0 | 14.5 | 64.0 | 43.0 |
