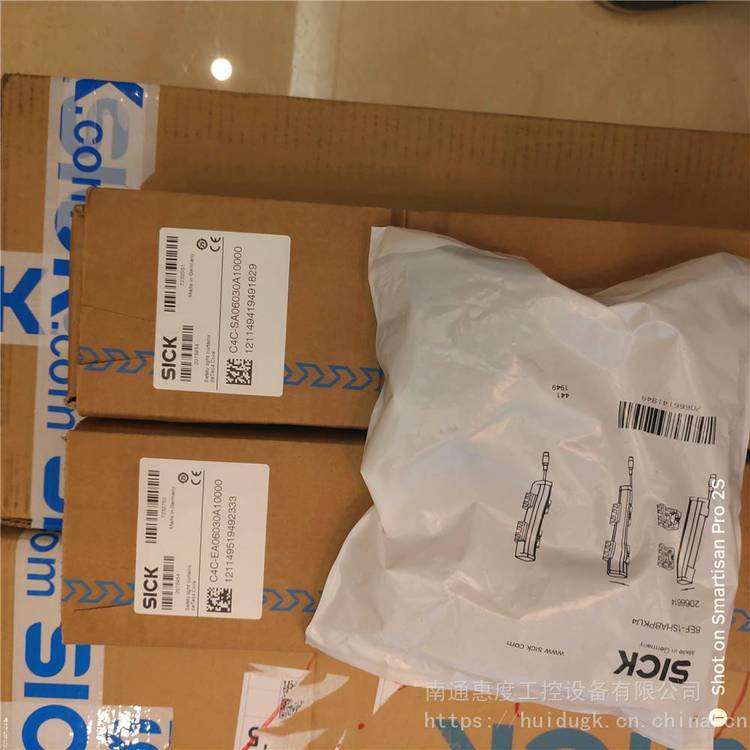

.jpg "安全光柵德國施克C4C-SA06010A10000西克SICK安全光幕傳感器")
| 產品參數 | |||
|---|---|---|---|
| 品牌 | 西克 | ||
| 產品特性 | 安全自動化 | ||
| 是否進口 | 否 | ||
| 產地 | 德國 | ||
| 加工定制 | 否 | ||
| 額定電壓 | 24V | ||
| 額定電流 | 300mA | ||
| 最小包裝數 | 1 | ||
| 分辨率 | 30mm | ||
| 保護高度 | 600mm | ||
| 保護距離 | 10m | ||
| 響應時間 | 13ms | ||
| 可售賣地 | 全國 | ||
| 型號 | C4C-SA06010A10000 | ||
600mm C4C-SA06030A10000? C4C-EA06030A10000
參數
| 應用領域 | 標準工業環境 |
| 系統硬件 | 對 |
| 兼容型發射器 | 1211471 |
| 兼容型接收器 | 1211472 |
| 分辨率 | 14 mm |
| 保護距離 | 10 m |
| 保護區高度 | 600 mm |
| 響應時間 | 13 ms |
| 無安全盲區 | 是 |
| 同步 | 光學同步 |
| 供貨范圍 | 發射器 接收器 測試棒的直徑符合安全光幕的分辨率 安全注意事項 安裝說明書 下載操作指南 |
環境參數
| 外殼防護等級 | IP65 (IEC 60529) IP67 (IEC 60529) |
| 工作環境溫度 | –30 °C 55 °C |
| 儲存溫度范圍 | –30 °C 70 °C |
| 空氣濕度 | 15 95 , 非冷凝 |
| 抗振動 | 5 g, 10 Hz 55 Hz (IEC 60068-2-6) |
| 抗沖擊能力 | 10 g, 16 ms (IEC 60068-2-27) |
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
.jpg)
供應西克Detec4安全光幕安全光柵， 型號如下：
300mm C4C-SA03030A10000? C4C-EA03030A10000?
450mm C4C-SA04530A10000? C4C-EA04530A10000?
600mm C4C-SA06030A10000? C4C-EA06030A10000?
750mm C4C-SA07530A10000? C4C-EA07530A10000?
900mm C4C-SA09030A10000? C4C-EA09030A10000?
1050mm C4C-SA10530A10000? C4C-EA10530A10000?
1200mm C4C-SA12030A10000? C4C-EA12030A10000?
1350mm C4C-SA13530A10000? C4C-EA13530A10000?
1500mm C4C-SA15030A10000? C4C-EA15030A10000?
1650mm C4C-SA16530A10000? C4C-EA16530A10000?
1800mm C4C-SA18030A10000? C4C-EA18030A10000?
1950mm C4C-SA19530A10000? C4C-EA19530A10000?
2100mm C4C-SA21030A10000? C4C-EA21030A10000?
供應西克Detec2安全光幕安全光柵， 型號如下：
?300mm C2C-SA03030A10000? C2C-EA03030A10000?
450mm C2C-SA04530A10000? C2C-EA04530A10000?
600mm C2C-SA06030A10000? C2C-EA06030A10000?
750mm C2C-SA07530A10000? C2C-EA07530A10000?
900mm C2C-SA09030A10000? C2C-EA09030A10000?
1050mm C2C-SA10530A10000? C2C-EA10530A10000?
1200mm C2C-SA12030A10000? C2C-EA12030A10000?
1350mm C2C-SA13530A10000? C2C-EA13530A10000?
1500mm C2C-SA15030A10000? C2C-EA15030A10000?
1650mm C2C-SA16530A10000? C2C-EA16530A10000?
1800mm C2C-SA18030A10000? C2C-EA18030A10000?
1950mm C2C-SA19530A10000? C2C-EA19530A10000?
2100mm C2C-SA21030A10000? C2C-EA21030A10000?
