模塊類型——COM Express TYPE2
處理器
IInb? Core? i7-3615QE (2.3 GHz, 6 MB Inb? Smart Cache, 45 W)
Inb? Core? i7-3612QE (2.1 GHz, 6 MB Inb? Smart Cache, 35 W)
Inb? Core? i7-3555LE (2.5 GHz, 4 MB Inb? Smart Cache, 25 W)
Inb? Core? i7-3517UE (1.7 GHz, 4 MB Inb? Smart Cache, 17 W)
Inb? Core? i5-3610ME (2.7 GHz, 3 MB Inb? Smart Cache, 35 W)
Inb? Core? i3-3217UE (1.6 GHz, 3 MB Inb? Smart Cache, 17 W)
Inb? Core? i3-3120ME (2.4 GHz, 3 MB Inb? Smart Cache, 35 W)
內存：max. 16 GByte DDR3 1333 MHz
芯片組：Inb QM77，Mobile
網絡：Inb? 82579 GbE LAN Controller with AMT 7.0 support
I/O 接口：6 x PCI Express?，4 x SATA，1 x EIDE (UDMA-66/100)，8 x USB 2.0
1 x PCI bus Rev. 2.3，1 x LPC bus，1 x I2C bus
音頻： High Definition Audio Interface
圖形：Inb? 6 Series HD graphics Processor integrated Mobile Inb? 6 Series HD graphics,
OpenGL 3.0 and DirectX 10.1 support, Two independent pipelines for full dual viewsupport,
High perbance hardware MPEG-2 decoding, WMV9 (VC-1) and H.264 (AVC) support Blu-ray support @ 40 Mbit/s,
hardware motion compensation(using HDMI 1.4 with 3D), no PEG support
CRT 接口： 350 MHz RAMDAC, resolutions up to QXGA (2048x1536)
視頻接口: 3 x DisplayPort，3 x HDMI，LVDS 2x24，1 x SDVO
康佳特板載控制器: 多層看門狗,不可擦除的用戶數據空間，生產信息以及主板信息記錄，板信息統計，BIOS修改，數據備份， I2C 總線 ，掉電控制。
嵌入式BIOS: AMI Aptio UEFI,4 MByte serial SPI firmware flash
安全性: 所有康佳特模塊都可以配備“可信任平臺模塊”(TPM)
電源管理: ACPI 3.0,ACPI 3.0 compliant, Smart Battery Management
操作系統
Microsoft? Windows? 7
Microsoft? Windows? XP
Microsoft? Windows? bded Standard
Linux 2.6
QNX 6.x
環境溫度
工作溫度: 0 to +60°存儲溫度: -20 to +80°C
濕度
工作: 10 to 90% / 存儲 5 to 95%

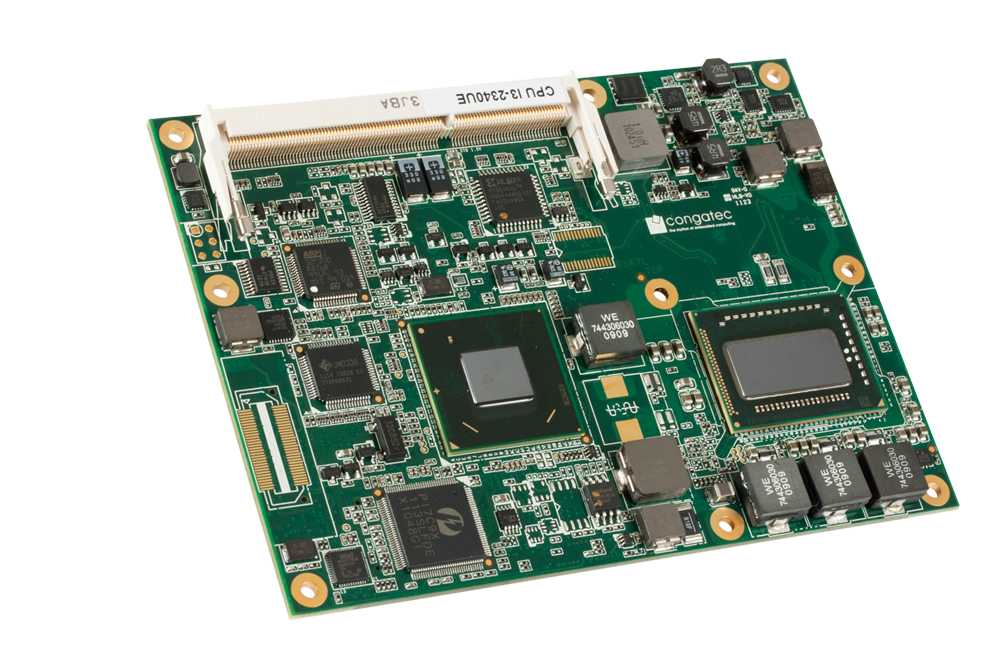

可提供擴展工作溫度 -40°C～85°C COM Express模塊conga-BS77
