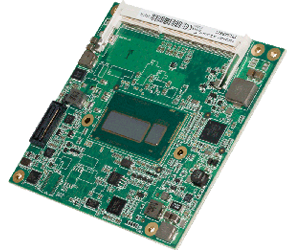

產品規格 COM Express? Compact, (95 x 95 mm), Type 6 Connector Layout
處理器 Inb? Core? i5-5350U (2 x 1.8 GHz, 3MB L2 cache,15 W )
Inb? Core? i7-5650U (2 x 2.2 GHz, 4MB L2 cache, 15 W)
Inb? Core? i3-5010U (2 x 2.1 Ghz, 3MB L2 cache, 15 W)
內存 2 Sockets, SO-DIMM DDR3L@1.35V up to 1600MT/s and 32GByte
芯片組 Integrated PCH-LP
網絡 Inb? I218-LM GbE LAN Controller with AMT 10 support
輸入/輸出接口 4 x PCIe 2.0
4 x SATA
2 x Express Card?
2 x USB 3.0
8 x USB 2.0
LPC bus
I2C bus
聲音 Digital High Definition Audio Interface with support for multiple audio codecs
顯示 Next Generation Inb? HD Graphics
with OpenCL 1.2, OpenGL 4.0 and DirectX11.1 support; up to three independent displays: HDMI 1.4, DVI, DP, VGA
嵌入式BIOS AMI Aptio UEFI8 MByte serial SPI firmware flash
電源管理 ACPI 4.0 with battery support
操作系統支持 Microsoft? Windows? 8 (if there are no specific Windows? 8 drivers in the Driver area for this product, then the required drivers are supplied within standard Windows? 8)
Microsoft? Windows? 7
Linux
Microsoft? Windows? bded Standard
工作、存儲溫度 Standard Operating 0 to +60°C Storage: -20 to +80°C
Extended temperature Operating -40 to +85°C Storage: -40 to +85°
濕度 Operating: 10 to 90% r. H. non cond. / Storage 5 to 95% r. H. non cond.
視頻接口 LVDS 2x24
2 x TMDS (HDMI) / DisplayPort 1.2a with support for Multi-Stream Transport (MST), resolutions up to 4k
