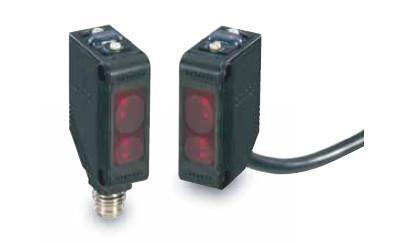

| 是否提供加工定制：否 | 品牌：OMRON/歐姆龍 | 型號：E3F3-D11M E3F3-D12M E3F3-D87 E3F3-D86 E3F3-D82 |
| 結構類型：放大器內藏型 | 檢測方式：對射式 | 電源電壓：DC12-24（V） |
| 輸出方式：PNP/NPN | 使用環境溫度：-25～+55（℃） | 產品認證：UL |
| 用途：詳見說明 |
|
|||
  |
■性能
放大器單元部
| 檢測方式 | 對射型 | 回歸反射型 | 擴散反射型 | |||
| 項目 | NPN輸出 | E3F3-T11 | E3F3-R11 | E3F3-R12 | E3F3-D11 | E3F3-D12 |
| E3F3-T16 | E3F3-R16 | E3F3-R17 | E3F3-D16 | E3F3-D17 | ||
| E3F3-T61 | E3F3-R61 | E3F3-R62 | E3F3-D61 | E3F3-D62 | ||
| E3F3-T66 | E3F3-R66 | E3F3-R67 | E3F3-D66 | E3F3-D67 | ||
| PNP輸出 | E3F3-T31 | E3F3-R31 | E3F3-R32 | E3F3-D31 | E3F3-D32 | |
| E3F3-T36 | E3F3-R36 | E3F3-R37 | E3F3-D36 | E3F3-D37 | ||
| E3F3-T81 | E3F3-R81 | E3F3-R82 | E3F3-D81 | E3F3-D82 | ||
| E3F3-T86 | E3F3-R86 | E3F3-R87 | E3F3-D86 | E3F3-D87 | ||
| 檢測距離 | 5M | 3M(無M.S.R功能) | 2M(有M.S.R功能) | 0.1M | 0.3M | |
| (使用E39-R1時) | (使用E39-R1時) | |||||
| 標準檢測物體 | 不透光物體：11mm min | 不透光物體：56mm min | 100×100mm 白畫紙 | |||
| 應差 | －－ | 檢出距離的20％以下 | ||||
| 光源（波長） | Infrared LED | Red LED | Infrared LED | |||
| 電源電壓 | DC 12～24V±10％(p-p)10％以下 | |||||
| 消耗電流 | DC ：45mA Max | DC ：25mA Max | ||||
| 控制輸出 | 負荷電源電壓DC26.4V以下、負荷電源電流100mA以下（殘留電壓1V以下） | |||||
| 保護電路 | 電源逆接/輸出短路 | |||||
| 響應時間 | 動作/回復 各1.0ms以下 | |||||
| 靈敏度調節 | 無 | 有 | ||||
| 環境照明 | 白熾燈3000lx以下/日光10000lx以下 | |||||
| 環境溫度 | 動作時：-25～+55℃(with no icing) 保存時：-30～+70℃(with no icing) | |||||
| 環境濕度 | 動作時：45％～85％(with no icing)RH 保存時：35％～95％(with no icing)RH | |||||
| 絕緣電阻 | 20MΩ以上(500VDC) | |||||
| 介電強度 | AC1000V以上 在50/60Hz時，在電流承載部件和外殼間達1分鐘 | |||||
| 耐振動（耐久） | 10～55Hz， 1.5mm雙幅，在X、Y、Z方向達到1h | |||||
| 耐沖擊（耐久） | 500m/s2雙幅，在X、Y、Z方向上各3次 | |||||
| 保護結構 | IEC60529 IP66 | |||||
| 連接方式 | 導線引出型（標準導線長度：2m） /M12接插件 | |||||
| 指示燈 | 動作指示燈（橙色）［投光器的電源指示燈（橙色）］ | |||||
| 重量 | 導線型 | 金屬外殼:200gMAX | 金屬外殼：100g MAX | |||
| 塑料外殼:170g MAX | 塑料外殼：85g MAX | |||||
| 連接頭型 | 金屬外殼:120g MAX | 金屬外殼：60g MAX | ||||
| 塑料外殼：40g MAX | 塑料外殼：20g MAX | |||||
| 包裝方式 | 尼龍袋 | |||||
| 材料 | 外殼 | ABS或BRASS | ||||
| 鏡頭 | PMMA | |||||
| 附件 | 螺母：ABS或BRASS | |||||
| 附件 | 螺母(4個)；說明書 | 螺母(2個)；反射板；說明書 | 螺母(2個)；說明書 | |||
產品型號如下：
| E3F3-D11 2M BY OMC |
| E3F3-D11M 2M BY OMC |
| E3F3-D12 2M BY OMC |
| E3F3-D12M 2M BY OMC |
| E3F3-D13 2M BY OMC |
| E3F3-D13M 2M BY OMC |
| E3F3-D16 BY OMC |
| E3F3-D16M BY OMC |
| E3F3-D17 BY OMC |
| E3F3-D17M BY OMC |
| E3F3-D31 2M BY OMC |
| E3F3-D31M 2M BY OMC |
| E3F3-D32 2M BY OMC |
| E3F3-D32M 2M BY OMC |
| E3F3-D36 BY OMC |
| E3F3-D36M BY OMC |
| E3F3-D37 BY OMC |
| E3F3-D37M BY OMC |
| E3F3-D61 2M BY OMC |
| E3F3-D61M 2M BY OMC |
| E3F3-D62 2M BY OMC |
| E3F3-D62M 2M BY OMC |
| E3F3-D66 BY OMC |
| E3F3-D66M BY OMC |
| E3F3-D67 BY OMC |
| E3F3-D67M BY OMC |
| E3F3-D81 2M BY OMC |
| E3F3-D81M 2M BY OMC |
| E3F3-D82 2M BY OMC |
| E3F3-D82M 2M BY OMC |
| E3F3-D86 BY OMC |
| E3F3-D86M BY OMC |
| E3F3-D87 BY OMC |
| E3F3-D87M BY OMC |
| E3F3-R11 2M BY OMC |
| E3F3-R11M 2M BY OMC |
| E3F3-R12 2M BY OMC |
| E3F3-R12M 2M BY OMC |
| E3F3-R16 BY OMC |
| E3F3-R16M BY OMC |
| E3F3-R17 BY OMC |
| E3F3-R17M BY OMC |
| E3F3-R31 2M BY OMC |
| E3F3-R31M 2M BY OMC |
| E3F3-R32 2M BY OMC |
| E3F3-R32M 2M BY OMC |
| E3F3-R36 BY OMC |
| E3F3-R36M BY OMC |
| E3F3-R37 BY OMC |
| E3F3-R37M BY OMC |
| E3F3-R61 2M BY OMC |
| E3F3-R61-E 2M BY OMS |
| E3F3-R61M 2M BY OMC |
| E3F3-R62 2M BY OMC |
| E3F3-R62M 2M BY OMC |
| E3F3-R66 BY OMC |
| E3F3-R66M BY OMC |
| E3F3-R67 BY OMC |
| E3F3-R67M BY OMC |
| E3F3-R81 2M BY OMC |
| E3F3-R81M 2M BY OMC |
| E3F3-R82 2M BY OMC |
| E3F3-R82M 2M BY OMC |
| E3F3-R86 BY OMC |
| E3F3-R86M BY OMC |
| E3F3-R87 BY OMC |
| E3F3-R87M BY OMC |
| E3F3-T11 0.2M BY OMC |
| E3F3-T11 2M BY OMC |
| E3F3-T11M 2M BY OMC |
| E3F3-T16 BY OMC |
| E3F3-T16M BY OMC |
| E3F3-T31 2M BY OMC |
| E3F3-T31M 2M BY OMC |
| E3F3-T36 BY OMC |
| E3F3-T36M BY OMC |
| E3F3-T61 2M BY OMC |
| E3F3-T61 5M BY OMC |
| E3F3-T61M 2M BY OMC |
| E3F3-T61M-D 2M BY OMS |
| E3F3-T61M-L 2M BY OMS |
| E3F3-T66 BY OMC |
| E3F3-T66M BY OMC |
| E3F3-T81 2M BY OMC |
| E3F3-T81M 2M BY OMC |
| E3F3-T86 BY OMC |
| E3F3-T86M BY OMC |
