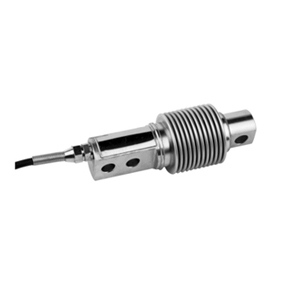

產品型號：GNS-BW01
產品量程：0～5,10,20,30,50,100,200,300,500kg
產品介紹
外形尺寸：
技術參數：
|
額定載荷 Rated capacities(Emax) |
5,10,20,30,40,50,75,100,150,200,250,300,500kg |
|
靈敏度Sensitivity |
2.0±0.002mV/V |
|
綜合誤差 Total error |
±0.02 %F.S |
|
蠕變(30分鐘)Creep error(30min) |
±0.05 %F.S |
|
零點平衡 Zero balance |
±1 %F.S |
|
零點溫度影響 TCO |
±0.02 %F.S/10℃ |
|
輸出溫度影響 TC SPAN |
±0.02 %F.S/10℃ |
|
輸入阻抗 Input impedance |
400±20Ω(ohms) |
|
輸出阻抗 Output impedance |
352±3Ω(ohms) |
|
絕緣電阻Insulation impedance |
≥5000MΩ |
|
溫度補償范圍Temperature range,compensated |
-10℃～+40℃ |
|
工作溫度范圍Temperature range,operating |
-30～+70℃ |
|
安全過載Maximum safe overload |
120%F.S |
|
極限過載Ultimate overload |
150%F.S |
|
推薦激勵電壓Excitation,recommend |
10~12V DC |
|
最大激勵電壓Excitation maximum |
15V DC |
|
密封等級 Protection Class |
IP68 |
|
材質 Construction |
合金鋼Alloy Steel ;不銹鋼Stainless Steel |
|
電纜 Cable |
Length:3m Diameter: Ф5mm |
