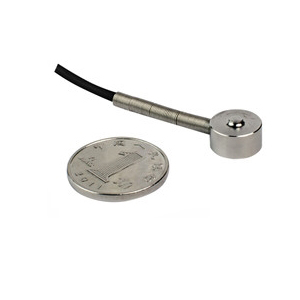

產品型號：GNS-W10
產品量程：5...100kg
外形尺寸：
技術參數：
|
額定載荷Rated capacities(Emax) |
5,10,15,20,30,50,100kg |
|
靈敏度Sensitivity |
1.0±0.1 mV/V |
|
綜合誤差Total error |
±1%F.S |
|
蠕變(30分鐘)Creep error(30min) |
±1%F.S |
|
零點平衡Zero balance |
±2%F.S |
|
零點溫度影響TCO |
±1 %F.S/10℃ |
|
輸出溫度影響TC SPAN |
±1 %F.S/10℃ |
|
輸入阻抗Input impedance |
350±10Ω |
|
輸出阻抗Output impedance |
350±3Ω |
|
絕緣電阻Insulation impedance |
≥5000MΩ |
|
溫度補償范圍Temperature range compensated |
-10℃～+60℃ |
|
工作溫度范圍Temperature range operating |
-20～+80℃ |
|
安全過載Maximum safe overload |
120%F.S |
|
極限過載Ultimate overload |
150%F.S |
|
推薦激勵電壓Excitation,recommend |
2.5~5V DC |
|
最大激勵電壓Excitation maximum |
5V DC |
|
密封等級Protection Class |
IP67 |
|
材質Construction |
不銹鋼Stainless Steel |
|
電纜Cable |
Length:3m Diameter:Ф2mm |
